Removing a Side Cover

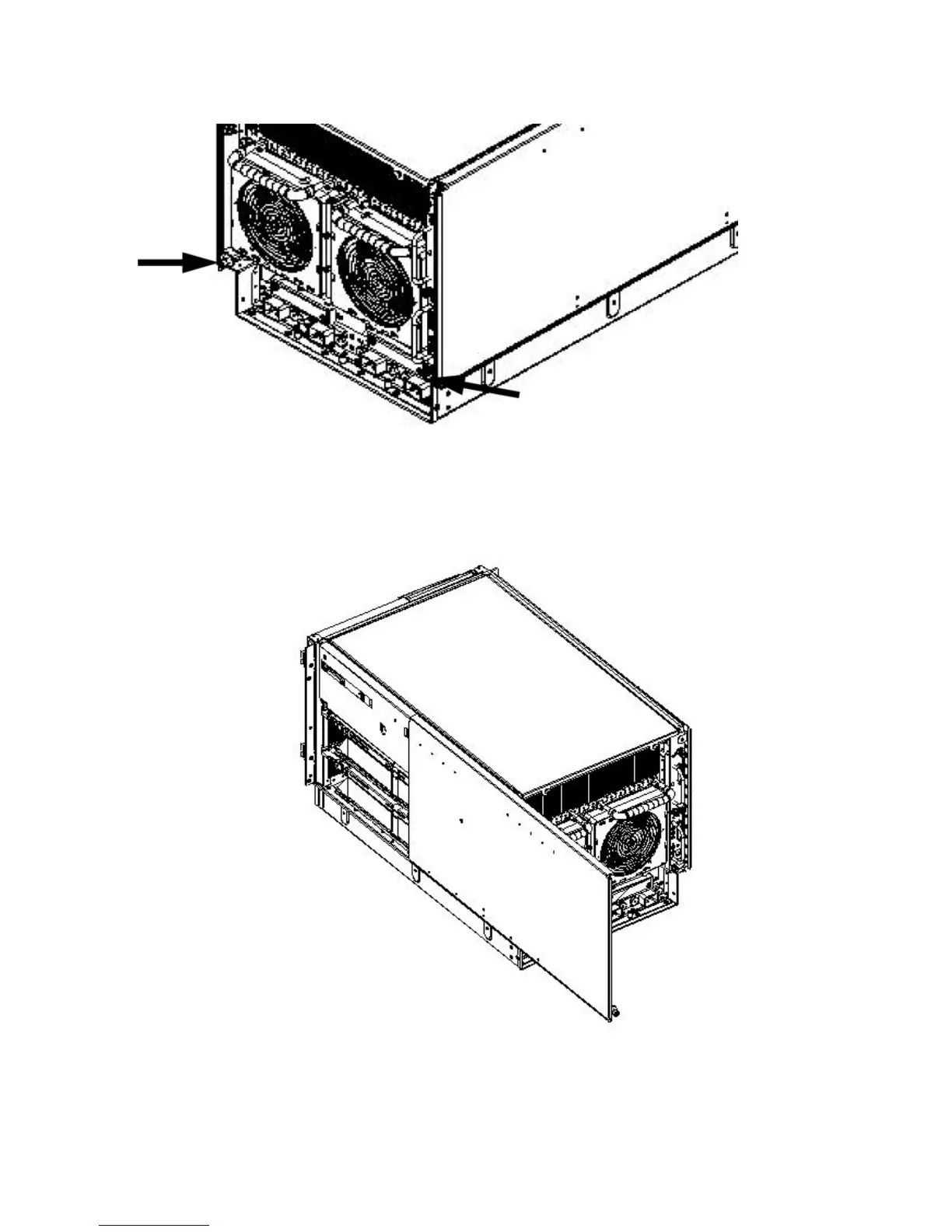

Figure 6-4 Side Cover Retaining Screw
To remove a side cover, follow these steps:
1. Loosen the retaining screw securing the cover to the chassis.
2. Slide the cover from the chassis.
Figure 6-5 Side Cover Removal Detail
Replacing a Side Cover
To replace a side cover, follow these steps:
1. Slide the cover in position. The cover easily slides into position.
2. To properly seat the cover, use a slow, firm pressure.
88 Removing and Replacing Server Components
