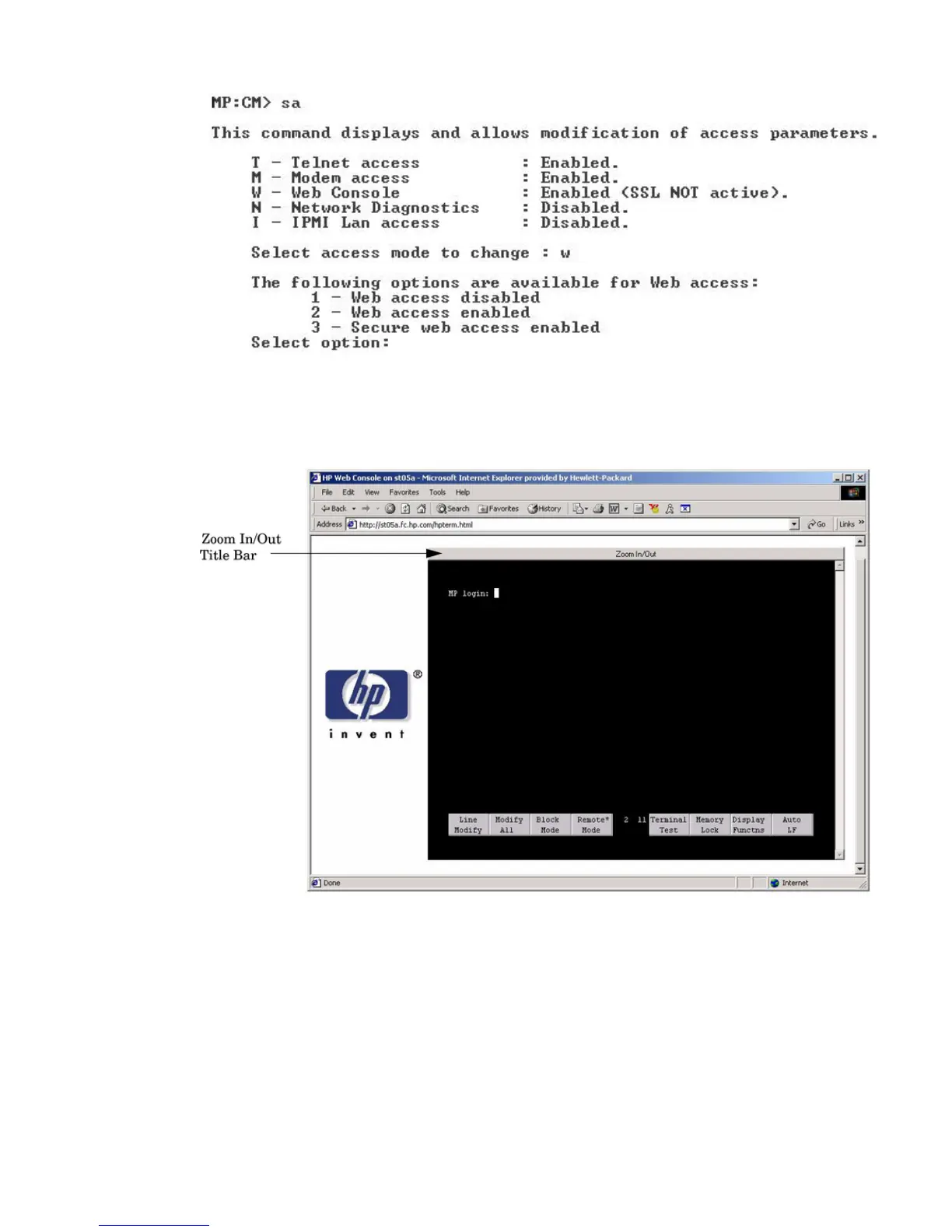

Figure 4-10 sa Command Screen
5. Launch a web browser on the same subnet using the IP address for the MP LAN port.
Figure 4-11 Browser Window
6. To generate a full screen MP window, click anywhere on the Zoom In/Out title bar.
7. Select the emulation type you want to use.
8. Login to the MP when the login window appears.
You now have access to the MP through a web browser.
Verifying the Presence of the Cell Boards
To perform this activity, either connect to the MP using a console, or connect the CE Tool (laptop)
to the RS-232 local port on the MP.
After logging in to the MP, verify that the MP detects the presence of all the cells installed in the
cabinet. It is important for the MP to detect the cell boards. If it does not, the partitions will not
boot.
MP Core I/O Connections 61
