HP StorageWorks 6400/8400 - Enterprise Virtual Array

• Figure 78 on page 121 MPX200 iSCSI and FCIP dedicated blades, both local and remote
• Figure 79 on page 122 HP Continuous Access EVA 3–site configuration with four gateways
• Figure 80 on page 123 HP Continuous Access EVA 3–site configuration with six gateways
• Figure 81 on page 124 HP Continuous Access EVA 3–site configuration with eight gateways
• Figure 82 on page 125 HP Continuous Access EVA 3–site configuration with six gateways with full
peer-to-peer connectivity

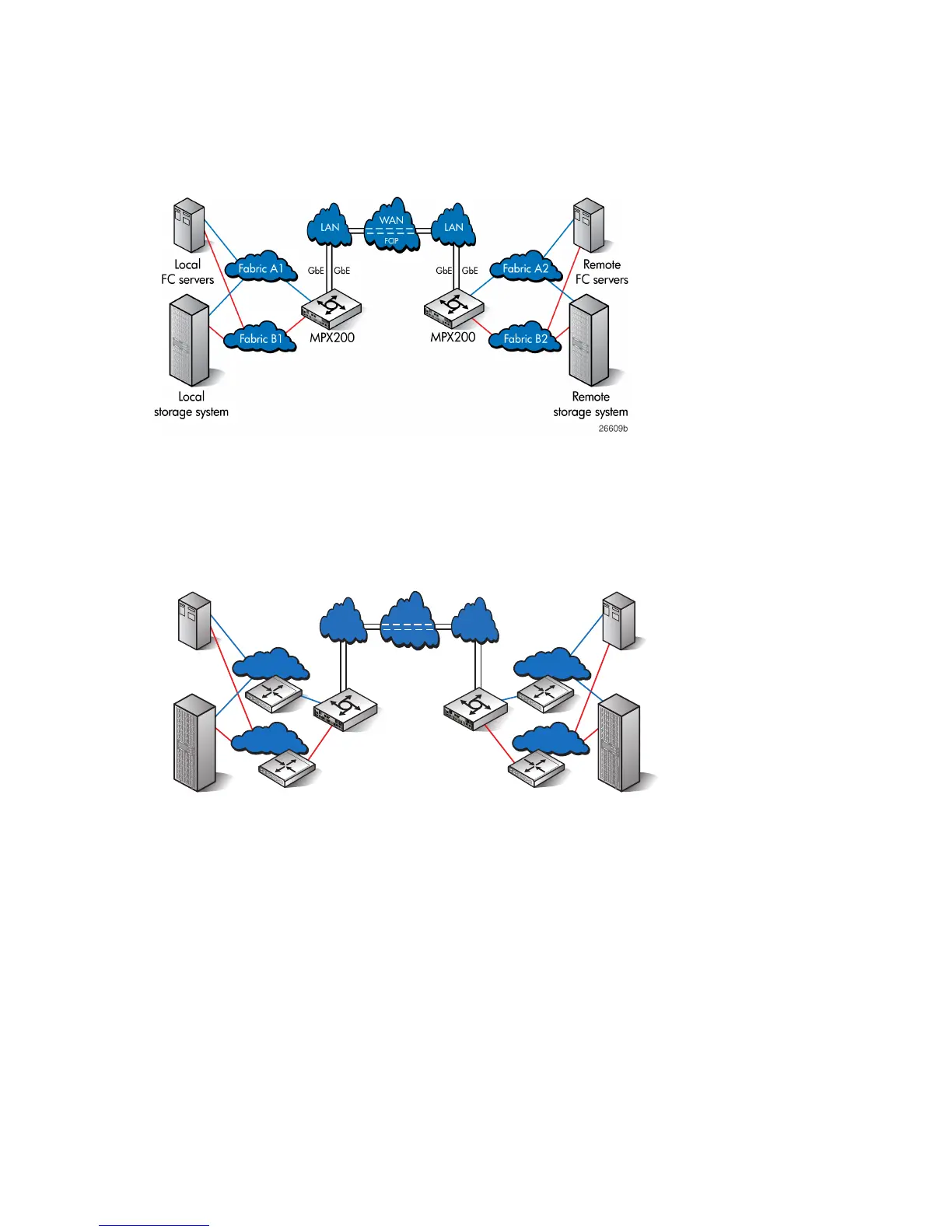

Figure 69 MPX200 basic FCIP configuration with one or two long-distance links
.
Figure 70 shows a configuration using MPX200 with FCIP and B-series switches with Integrated
Routing. This provides fabric isolation between the local and remote fabrics, allowing device access
without merging the fabrics. This can be implemented in all supported MPX200 FCIP configurations
using a Fibre Channel switch with Integrated Routing or a B-series router configured for Fibre Channel
routing.
WAN
MPX200
26625a
Fabric A2
Fabric B2
Fabric A1
Fabric B1
MPX200
Local
storage system
Remote
storage system
Local
FC servers
Remote
FC servers
GbEGbE
FCIP
GbEGbE
LANLAN
GE1 GE2
IOIOI
FC1 FC2MGMT
GE4
GE3
HP StorageWorks
MPX200
1 GbE Blade
MPX200 Multifunction Router
GE1 GE2
IOIOI
FC1 FC2MGMT
GE4
GE3
HP StorageWorks
MPX200
1 GbE Blade
MPX200 Multifunction Router
EX
EX
E
E
Figure 70 MPX200 FCIP with B-series Integrated Routing
.
MPX200 Multifunction Router 117
