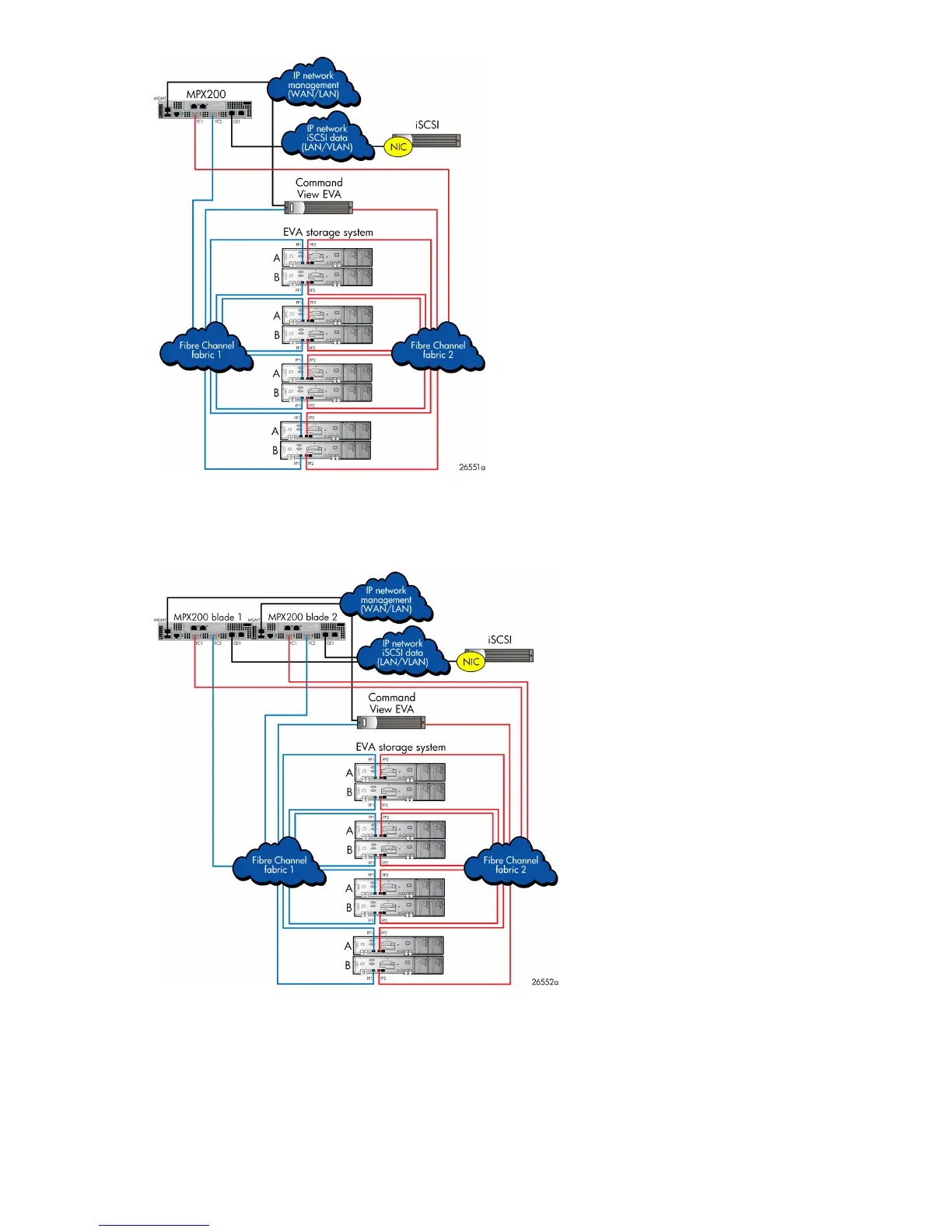

Figure 3 MPX200 single-blade multi-EVA configuration
.
Figure 4 illustrates a multi-EVA configuration with connectivity for up to four EVA storage systems from
dual MPX200 blades. This configuration provides high availability with failover between blades.
Figure 4 MPX200 dual-blade multi-EVA configuration
.
Figure 5, Figure 6, and Figure 7 illustrate EVA direct connect configurations.
MPX200 Multifunction Router 25
