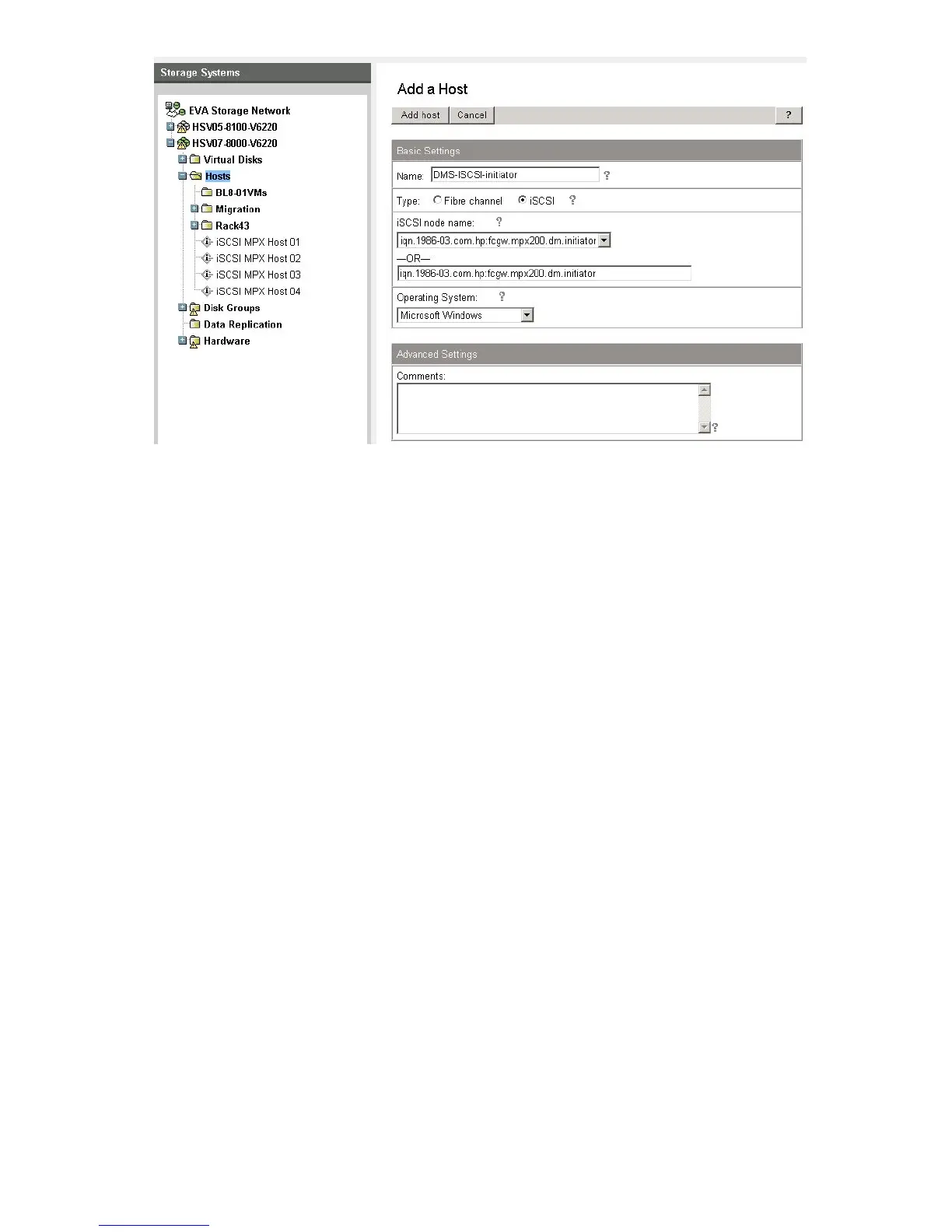

Figure 97 DMS iSCSI host entry in HP Command View EVA
.
Adding LUNs to the DMS iSCSI host entry with HP Command View EVA
This procedure follows the same method of creating and presenting LUNs for any iSCSI initiator
connected to the EVA through the MPX200.
1. In HP Command View EVA, create a virtual disk:
1. Click the EVA storage system icon to start the iSCSI storage presentation.
2. Select the virtual disk folder.
3. Click Create Vdisk to create a LUN.
A dialog box opens.
4. Enter a name for the virtual disk in the Name box.
5. Enter the size of the virtual disk in the Size box.
6. Select a disk group from the Disk Group pull-down menu.
7. Select a Raid Redundancy.
8. (Optional) Select Advanced Settings.
9. Click Create Vdisk.
MPX200 Multifunction Router 165
