3. Open a firewall port by enabling the iSCSI software client service:
a. Using the VMware VI client, select the server.
b. Click the Configuration tab, and then click Security Profile.
c. Click the Properties link.
The Firewall Properties dialog box is displayed. See Figure 52 on page 79.
d. Select the check box for Software iSCSI to enable iSCSI traffic.
e. Click OK.

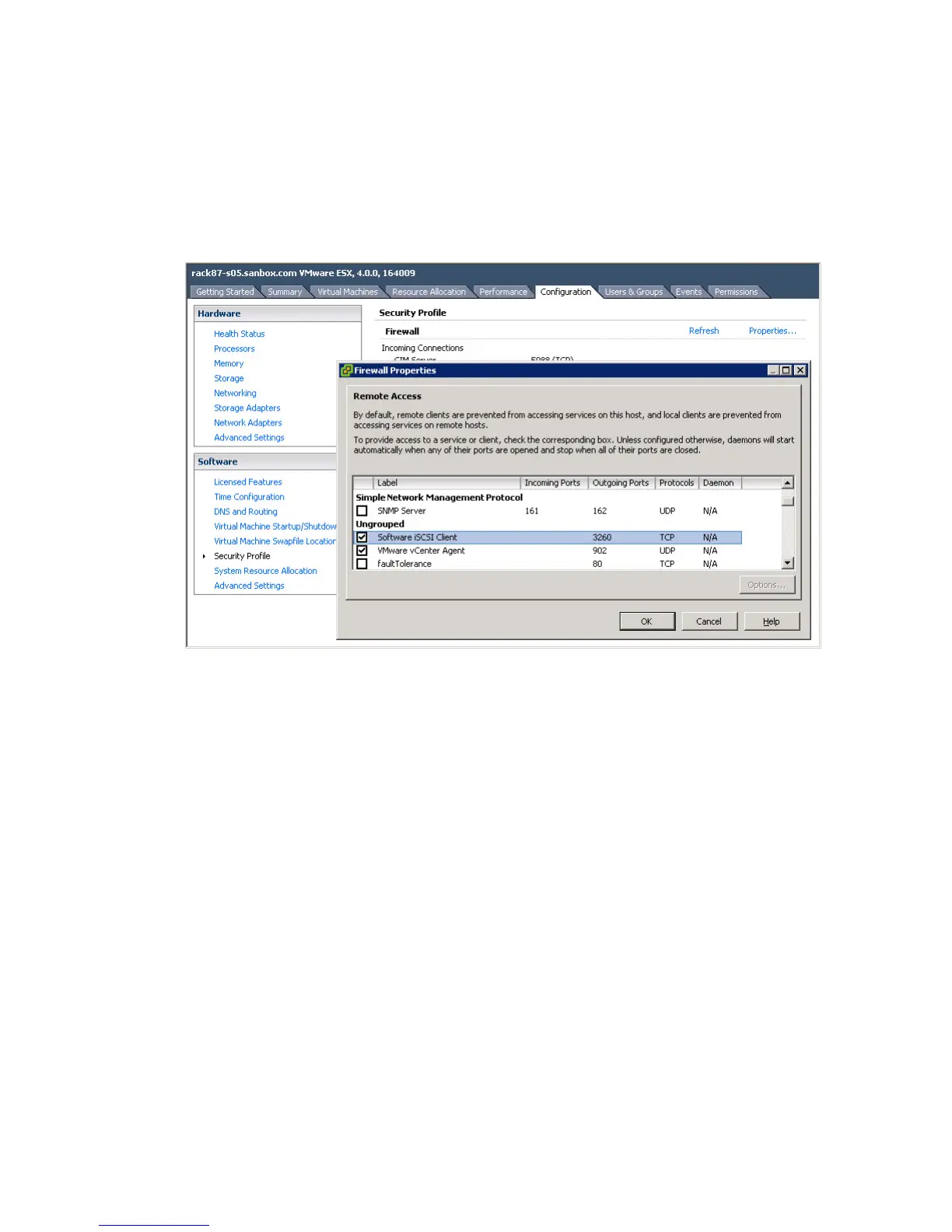

Figure 52 Firewall Properties dialog box
.
MPX200 Multifunction Router 79
