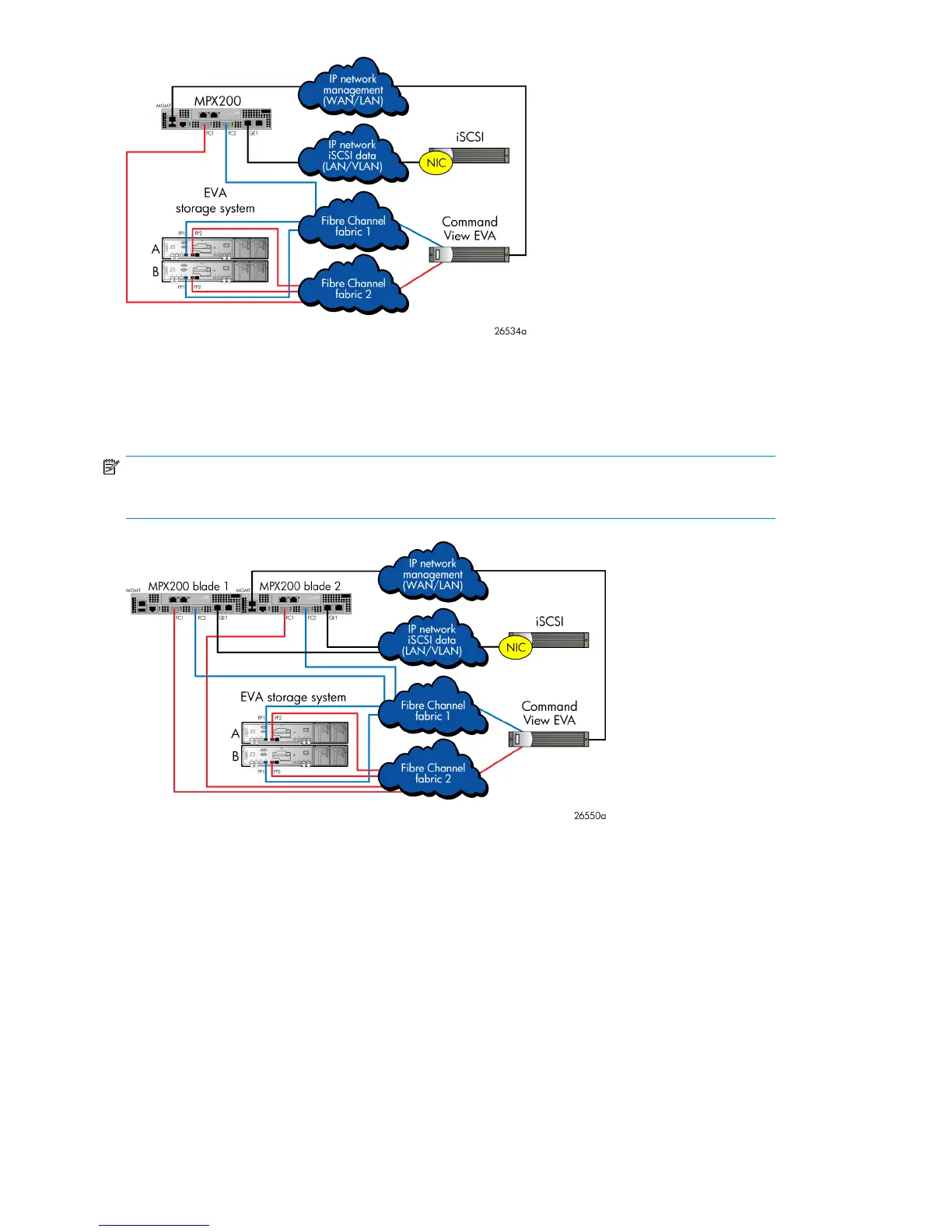

Figure 1 MPX200 single-blade fabric-attached configuration
.
Figure 2 illustrates an MPX200 dual-blade fabric-attached configuration. This configuration provides
high availability with failover between blades.
NOTE:
A dual-blade configuration may require reconfiguration of device mappings.
Figure 2 MPX200 dual-blade fabric-attached configuration
.
Figure 3 illustrates a multi-EVA configuration with connectivity for up to four EVA storage systems from
a single MPX200 blade.
MPX200 Multifunction Router overview24
