1. Perform zoning as follows:
a. Connect the Fibre Channel ports of the data migration appliance to a switch where the
storage controller ports are also logged.
b. Using switch management tools, create a zone, DM_Host_HDS.
c. In this zone, add the WWPN of the data migration appliance Fibre Channel ports and
storage controller ports.
d. Save the zoning information and activate the new zoning configuration.
2. Open the Storage Navigator Modular application. If you are using the tool for the first time, you
may have to discover the array using the IP assigned to the storage controller.
3. On the Tool menu, click Operation Mode > Change, and then change to Management Mode (see
Figure 132).

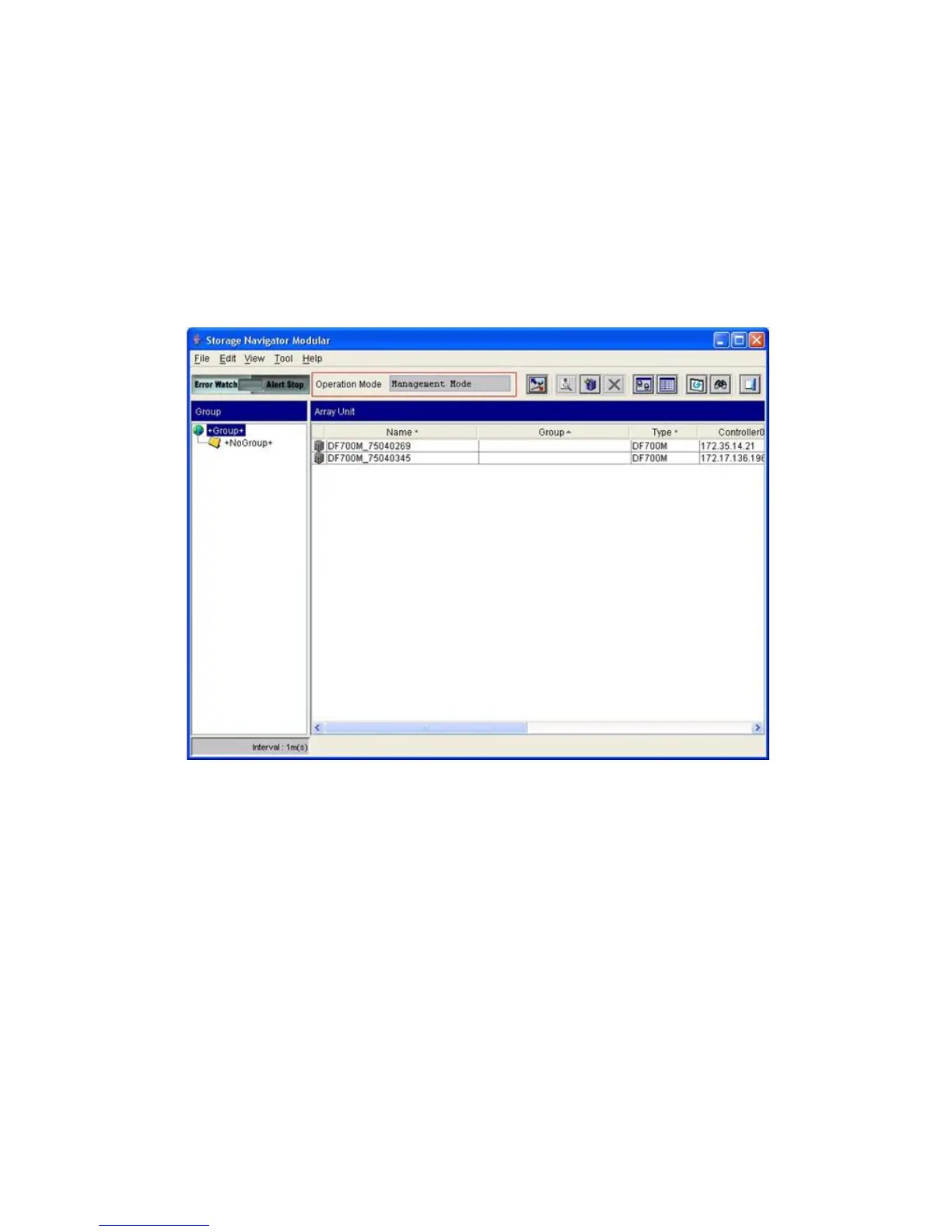

Figure 132 Changing to Management Mode
.
4. Under Array Unit, double-click the name of the array to manage.
The Array System Viewer window opens.
5. In the left pane, click the Logical Status tab.
MPX200 Multifunction Router 385
