Cable Color Description
Gold Box 2 drive backplane Mini-SAS cable to controller port 2
Pink Box 1 drive backplane Mini-SAS cable to controller port 1

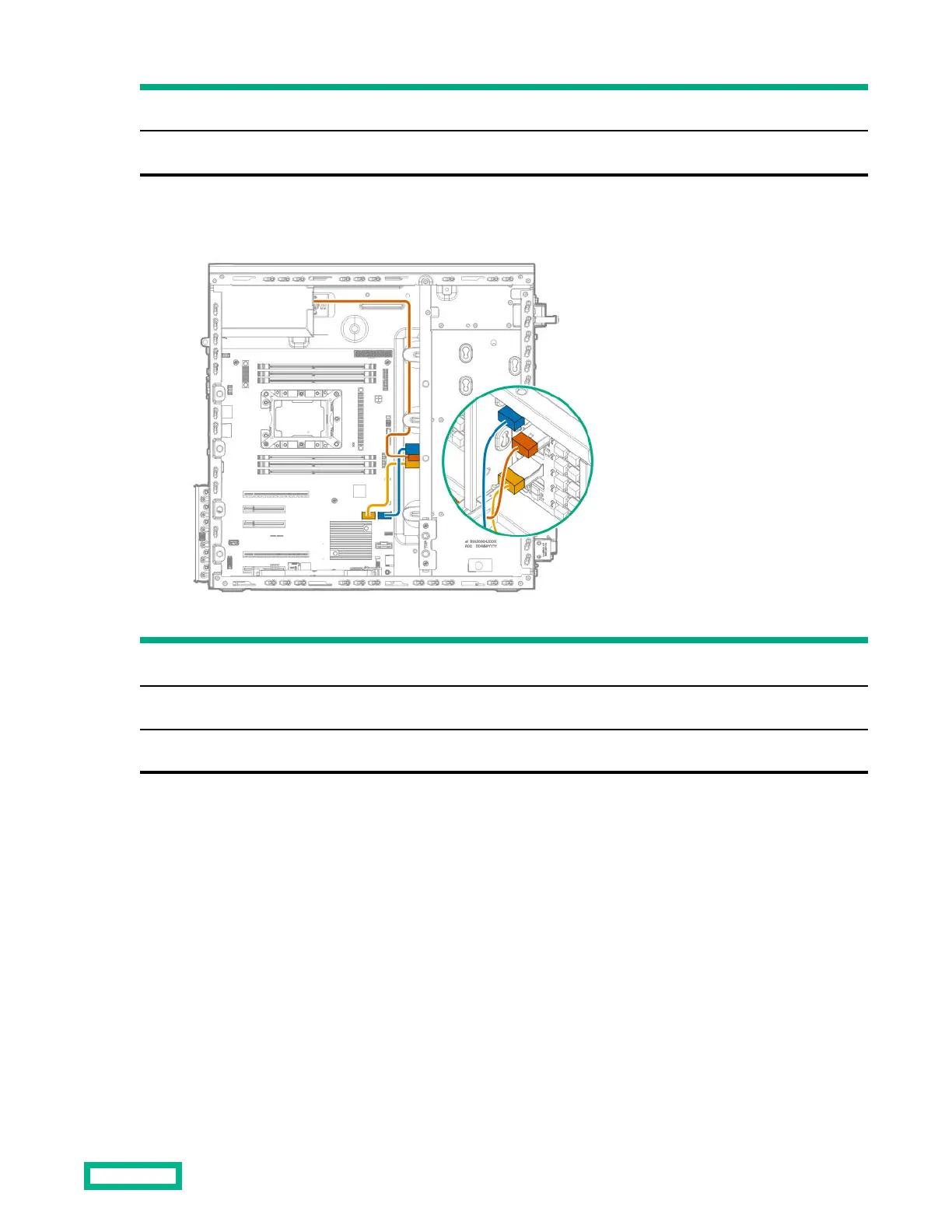

SFF hot-plug drive cabling
Box 1 drive backplane connected to the system board
Cable color Description
Orange Drive power supply cable
Blue Box 1 drive backplane port 1 Mini-SAS cable to system board x4 SATA port 1
Gold Box 1 drive backplane port 2 Mini-SAS cable to system board x4 SATA port 2
Cabling 118
