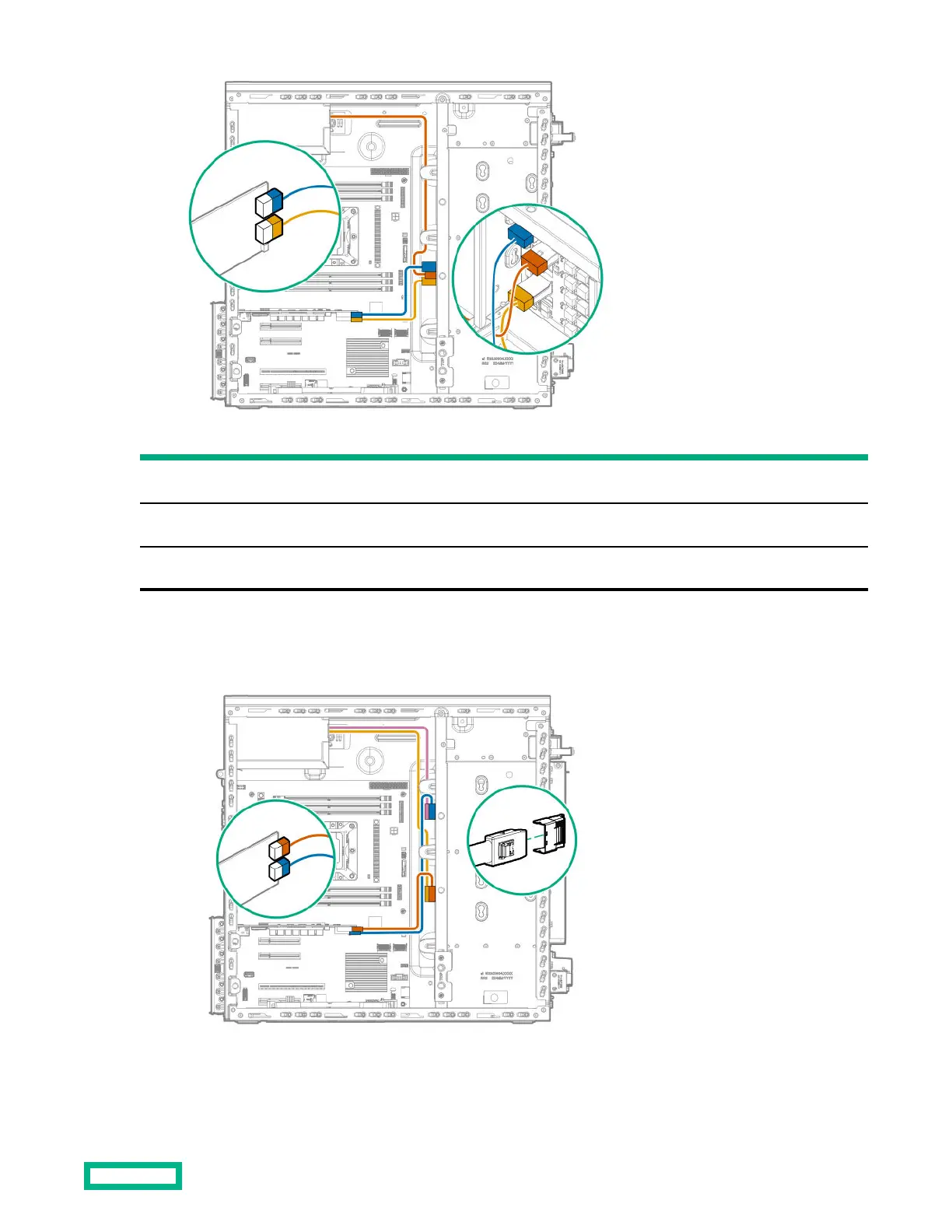

Box 1 drive backplane connected to a Smart Array controller
Cable color Description
Orange Drive power supply cable
Blue Box 1 drive backplane port 1 Mini-SAS cable to type-p controller port 1
Gold Box 1 drive backplane port 2 Mini-SAS cable to type-p controller port 2
Storage controller cabling
Smart Array controller connected to the two 4-bay LFF hot-plug drive cage
Cabling
119
