10. Label the drives before removing them. The drives and drive blanks must be returned to their original locations.
11. Remove all drives and drive blanks.

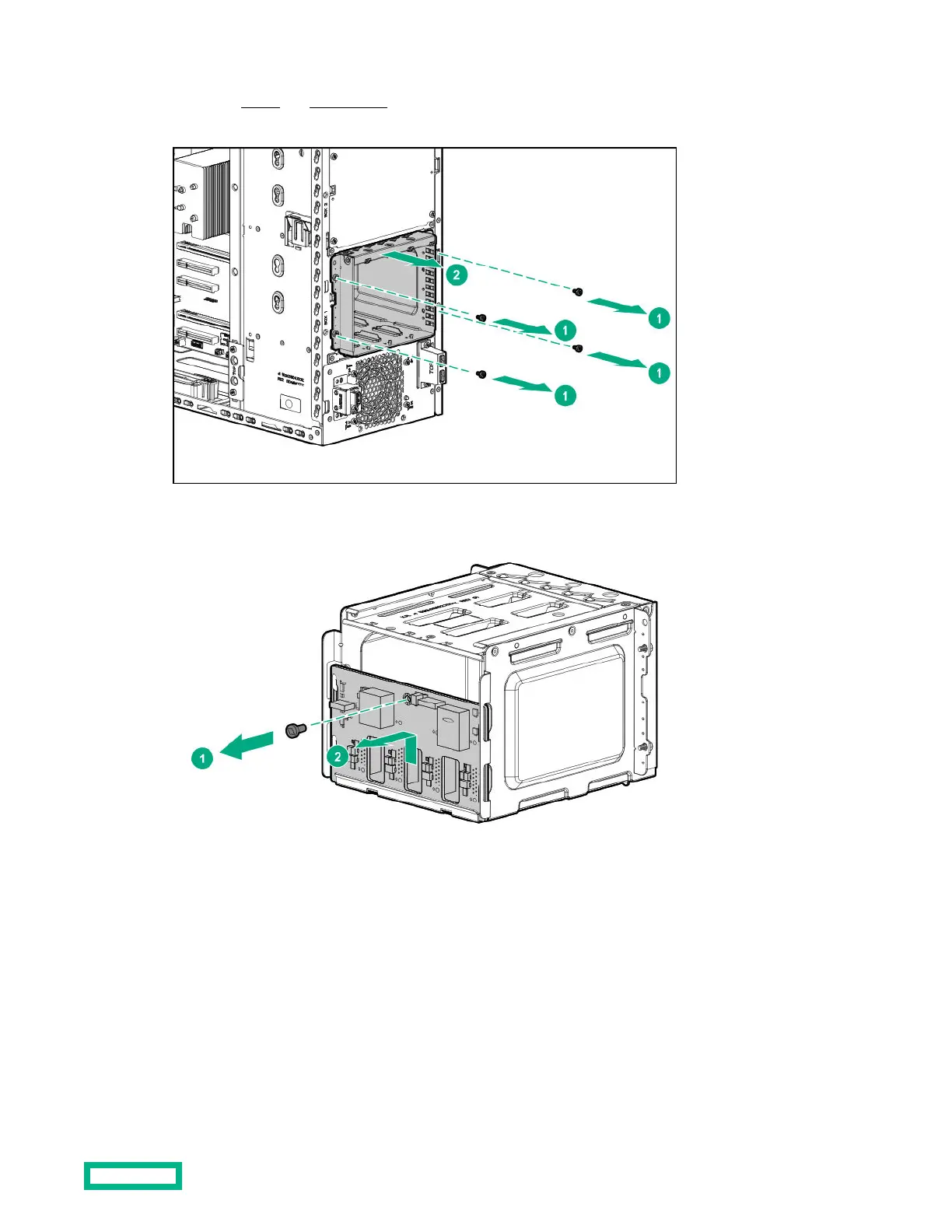

12. Remove the drive cage.
13.
Remove the drive backplane.
To replace the component, reverse the removal procedure.
Removing and replacing the eight-bay SFF drive cage assembly
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Removal and replacement procedures
55
