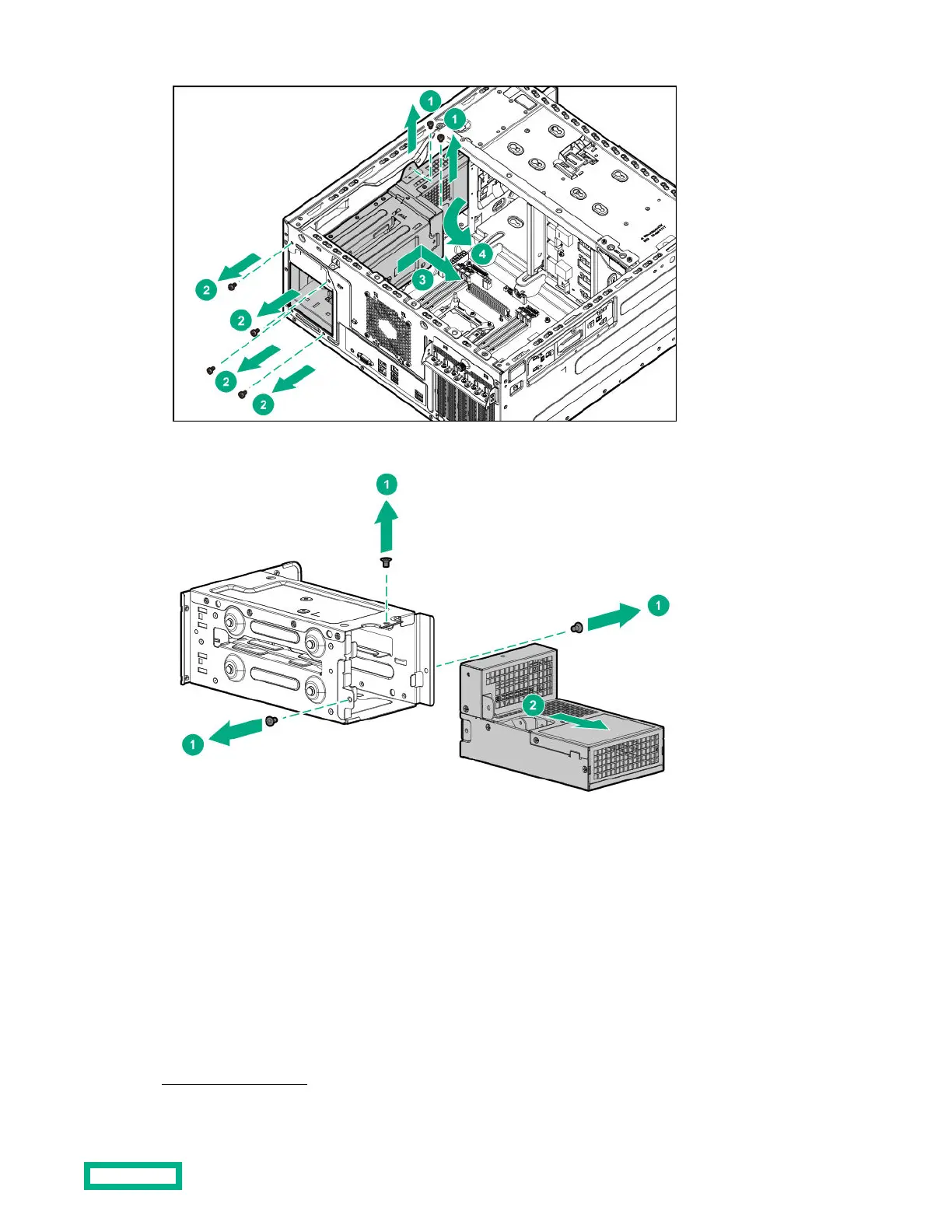

10. Remove the RPS backplane assembly from the bay.
11. Remove the RPS backplane module from the bracket.
To replace the component, reverse the removal procedure.
Fan replacement
Removing and replacing the default PCI fan
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Procedure
1. Power down the server.
2. Remove all power:
Removal and replacement procedures
76
