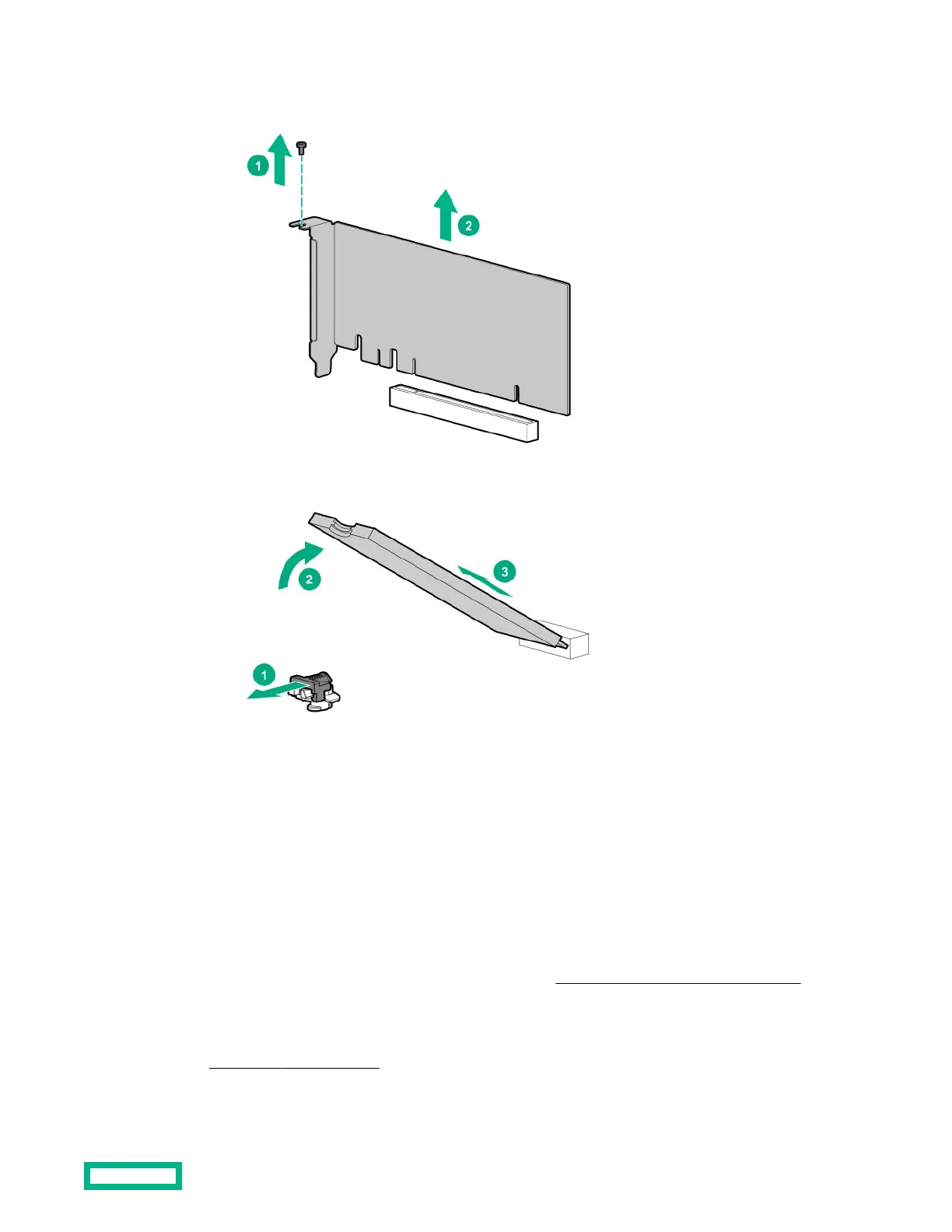

8. Remove the PCIe riser cage, if necessary.
9. Remove the boot device.
10.
Remove the drives from the boot device.
Retain these drives for installation onto the replacement boot device.
To replace the component, reverse the removal procedure.
Removing and replacing a boot device drive
The boot device supports two physical drive sizes:
• 22110 model (110mm)
• 22080 model (80mm)
Two drives of the same physical size, or one of each size (80mm and 110mm), can be installed at the same time.
Depending on the replacement drive model, you might be required to relocate the M.2 drive retaining latches on the
boot device.
Prerequisites
Review the boot device drive bay LEDs to determine the failed drive.
Removal and replacement procedures
