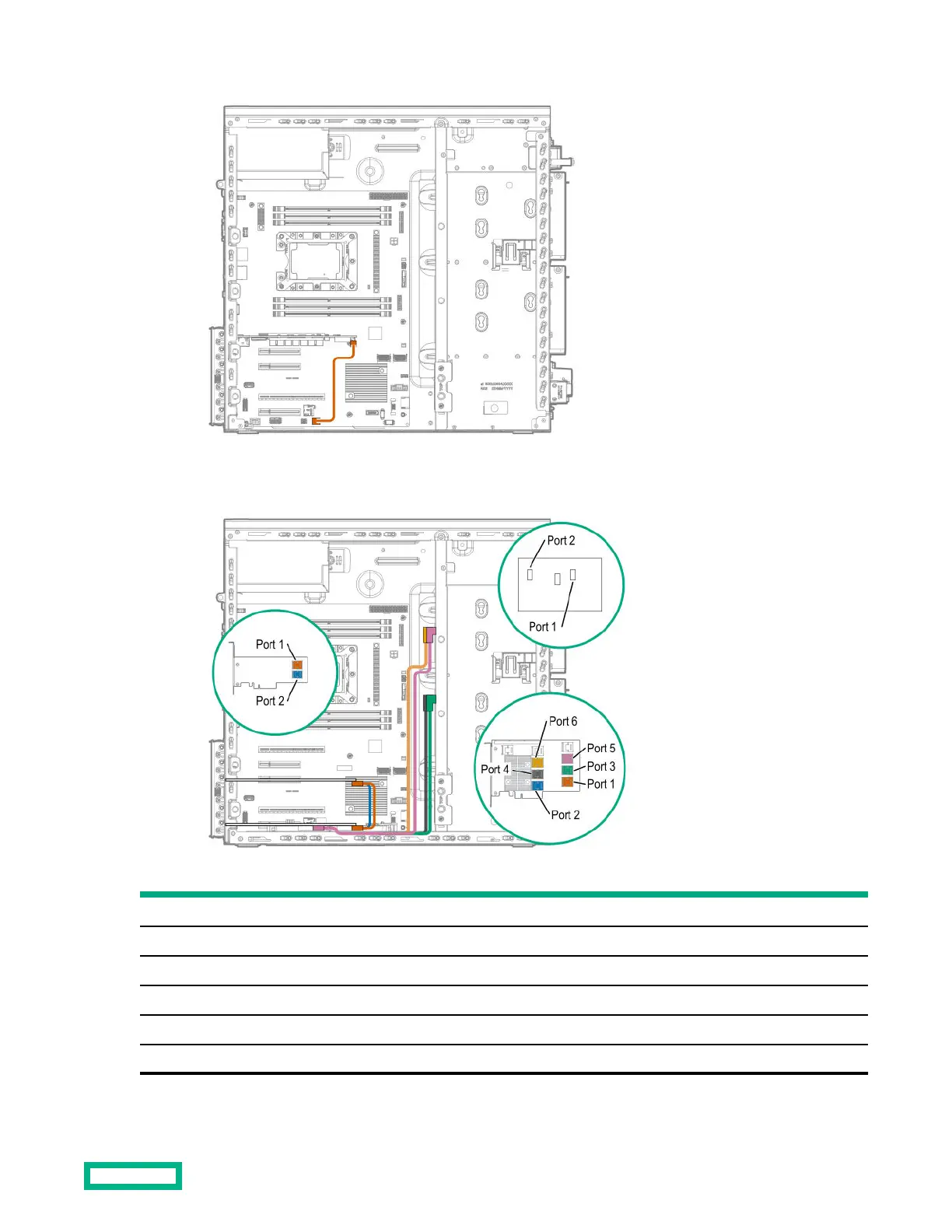

Storage controller backup power cabling
12G SAS expander cabling
Color
Description
Orange Controller Mini-SAS X-cable from controller port 1 to SAS expander port 1
Blue Controller Mini-SAS X-cable from controller port 2 to SAS expander port 2
Gold Mini-SAS X-cable from SAS expander port 6 to Box 2 drive backplane port 2
Pink Mini-SAS X-cable from SAS expander port 5 to Box 2 drive backplane port 1
Black Mini-SAS X cable from SAS expander port 4 to Box 1 drive backplane port 2
Green Mini-SAS X cable from SAS expander port 3 to Box 1 drive backplane port 1
Cabling 121
