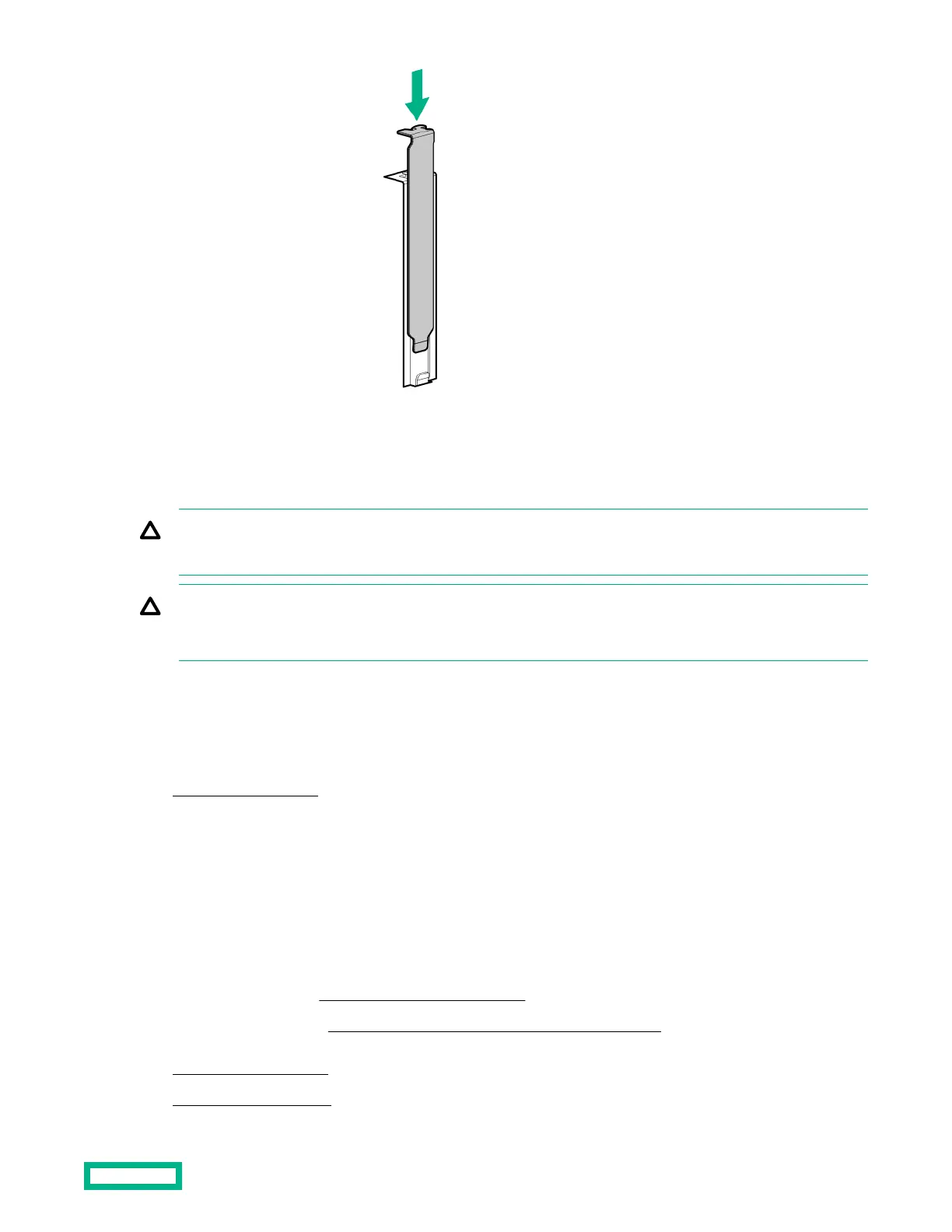

To replace the component, reverse the removal procedure.
Removing and replacing a Smart Array storage controller
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all PCI slots have
either an expansion slot cover or an expansion board installed.
CAUTION: Before replacing a DIMM, expansion board, or other similar PCA components due to a perceived
hardware error, make sure first that the component is firmly seated in the slot. Do not bend or flex circuit boards
when reseating components.
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Procedure
1.
Power down the server.
2.
Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. Do one of the following:
• Server in rack mode: Remove the server from the rack.
• Server in tower mode:
Position the tower server for hardware configuration.
5. Remove the access panel.
6.
Remove the PCI air bale.
Removal and replacement procedures
65
