Procedure
1. Remove the front bezel.
2. Back up all server data on the drive.
3.
Determine the status of the drive from the drive LED definitions.

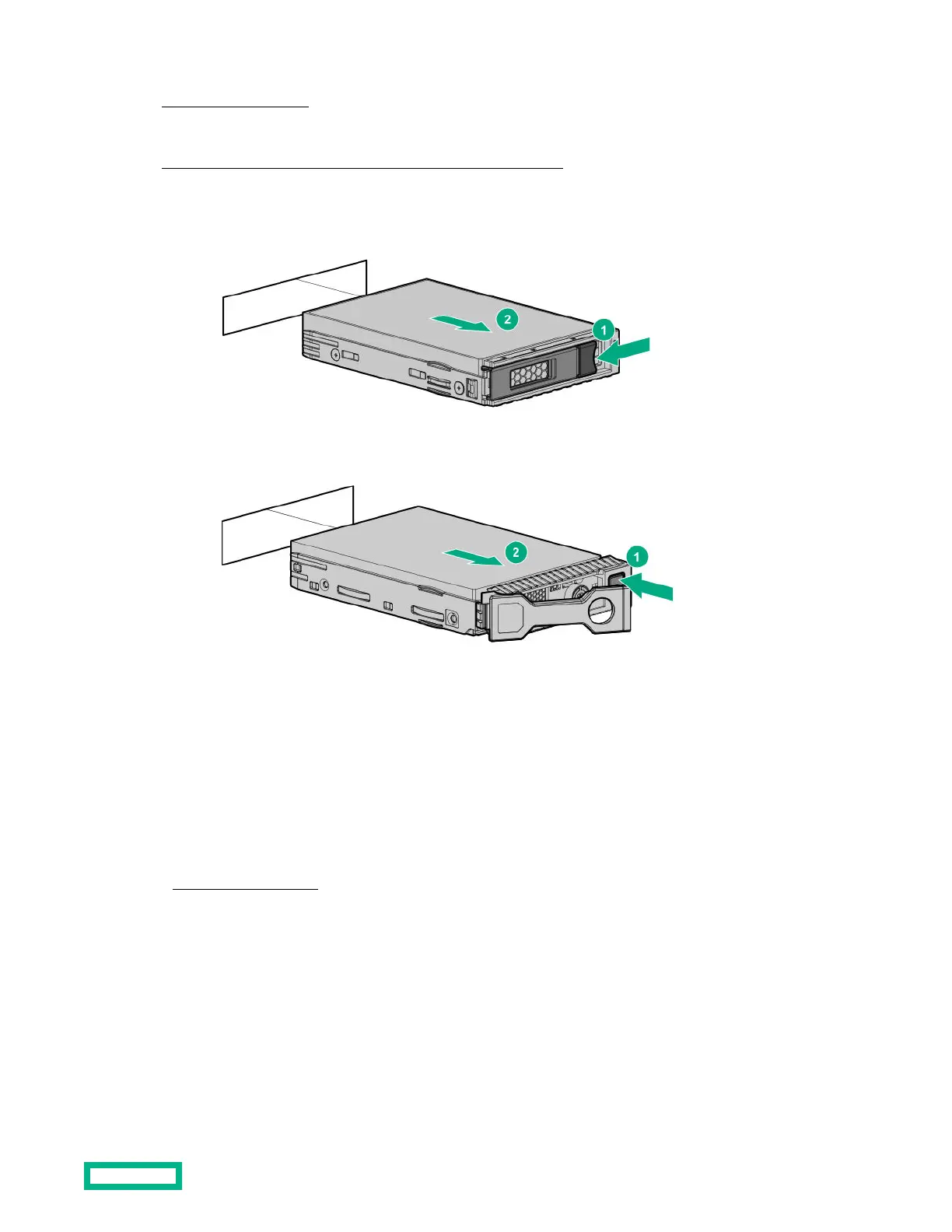

4. Remove the drive:
• LFF
• SFF
To replace the component, reverse the removal procedure.
Removing and replacing the non-hot-plug drive
Prerequisites
Before you perform this procedure, make sure you have the T-15 Torx screwdriver available.
Procedure
1. Power down the server.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. Do one of the following:
Removal and replacement procedures
45
