Procedure
1. Power down the server.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. Do one of the following:
• Server in rack mode:
Remove the server from the rack.
• Server in tower mode: Position the tower server for hardware configuration.
5.
Remove the access panel.
6. Remove the front bezel.
7.
Remove the PCI air bale.
8.
Remove the system air bale.
9.
Disconnect all existing drive cables.
10.
Label the drives before removing them. The drives must be returned to their original locations.
11.
Remove all
drives and drive blanks.
12.

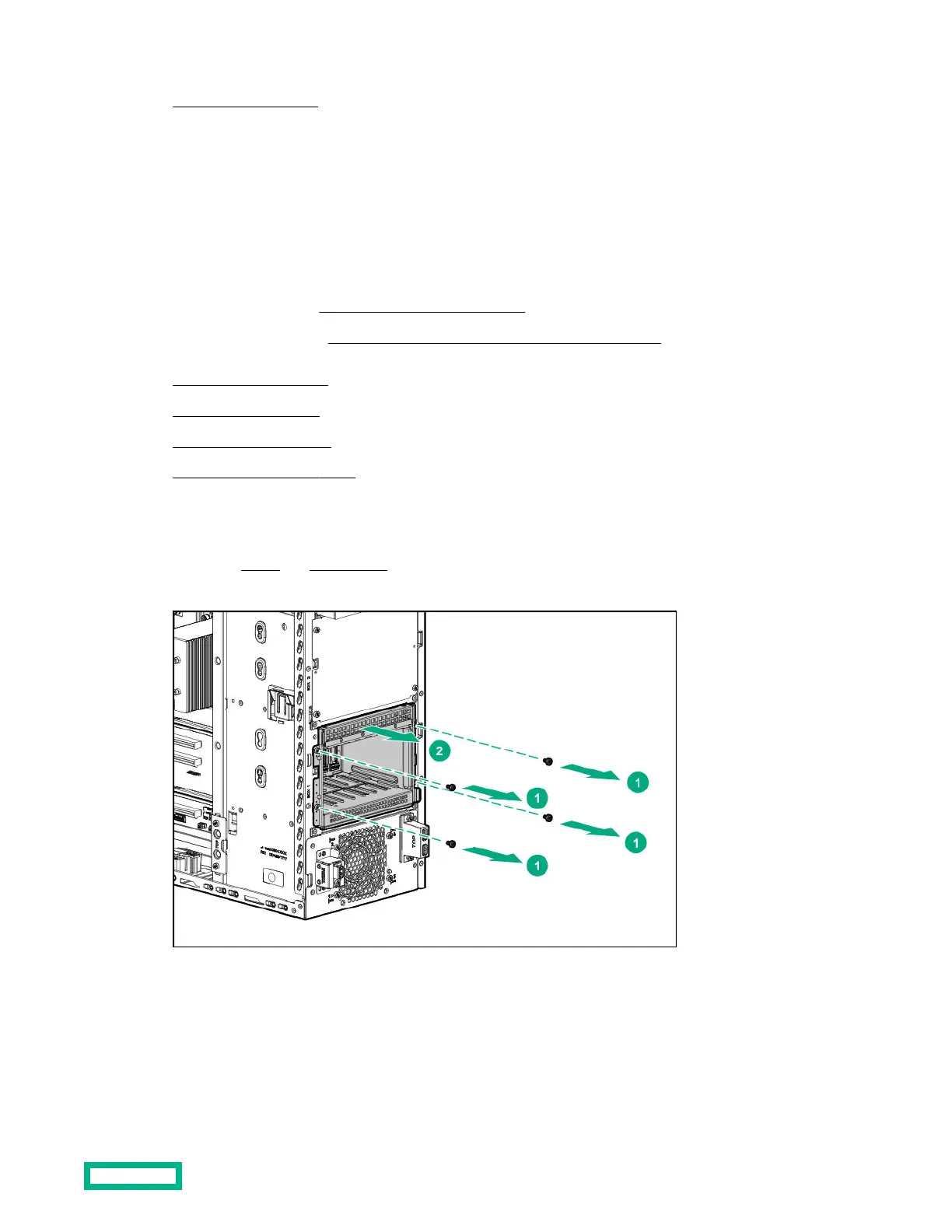

Remove the drive cage assembly.
To replace the component, reverse the removal procedure.
