Procedure
1. Power down the server.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. Do one of the following:
• Server in rack mode:
Remove the server from the rack.
• Server in tower mode: Position the tower server for hardware configuration.
5.
Remove the access panel.
6. Remove the PCI air bale.
7.
Remove the system air bale.
8.

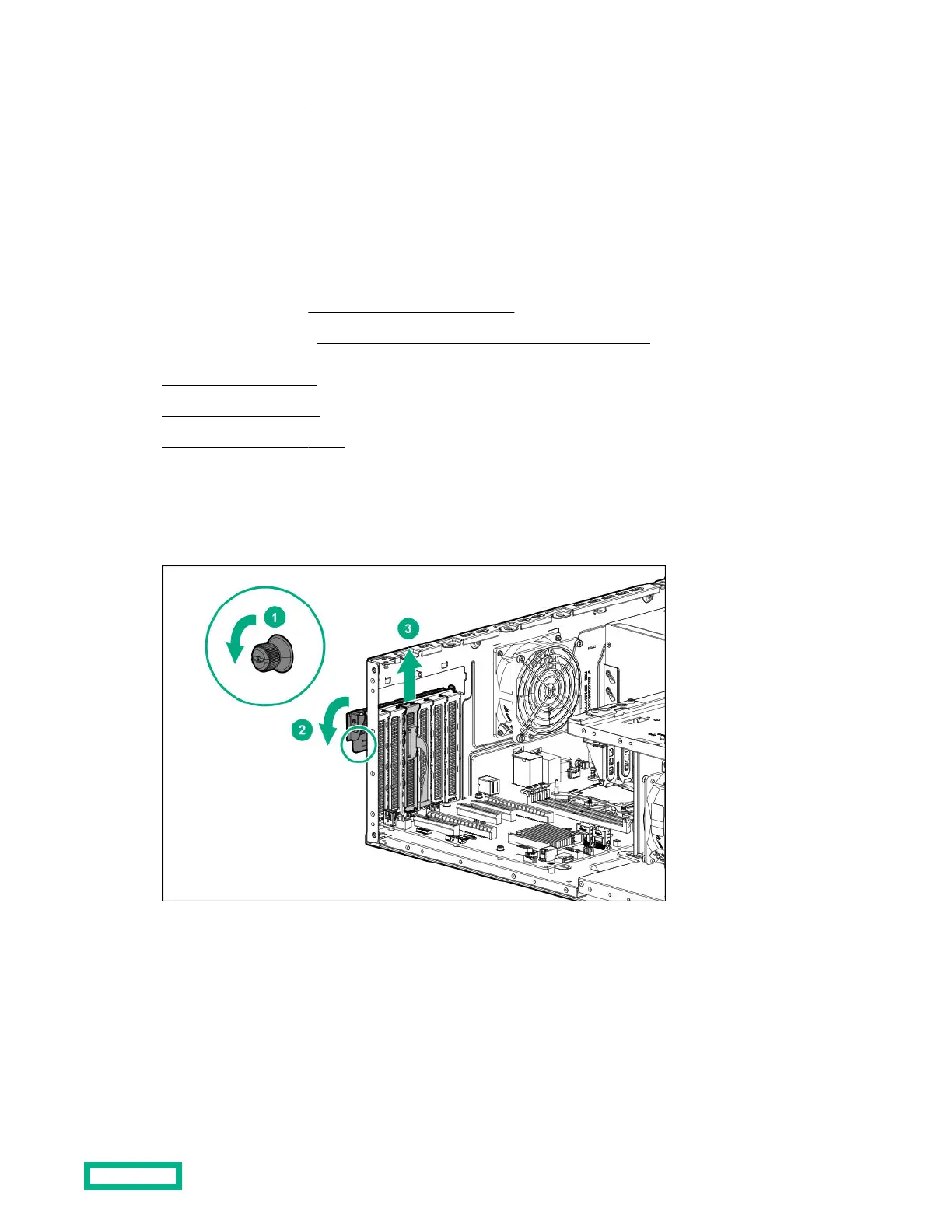

Remove the serial port bracket:
a.
Loosen the thumbscrew and open the PCIe slot cover retainer.
b.
Disconnect the serial cable from the system board and remove the serial port bracket.
9. Remove the serial port cable from the bracket:
a. Remove the nut screws.
b. Detach the serial port cable from the bracket.
Removal and replacement procedures
50
