• T-30 Torx screwdriver
• T-15 Torx screwdriver
Procedure

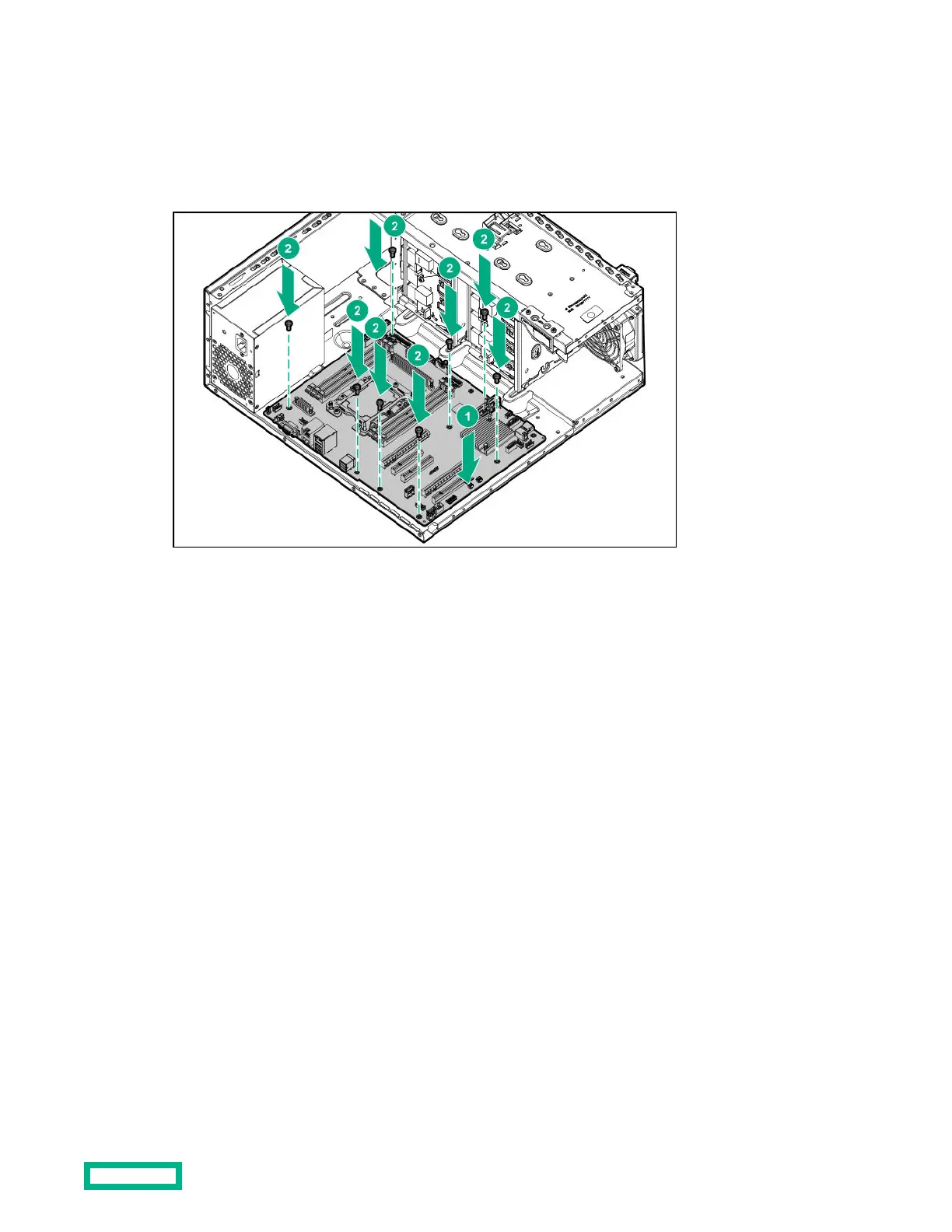

1. Install the spare system board.
2.
Install the processor heatsink assembly:
a.
Locate and align the Pin 1 indicator on the processor frame and the socket.
b.
Align the processor heatsink assembly with the heatsink alignment posts and gently lower it down until it sits
evenly on the socket.
The heatsink alignment posts are keyed. The processor will only install one way.
A standard heatsink is shown, your heatsink might look
dierent.
Removal and replacement procedures
86
