FULLTEST3
EN - 59

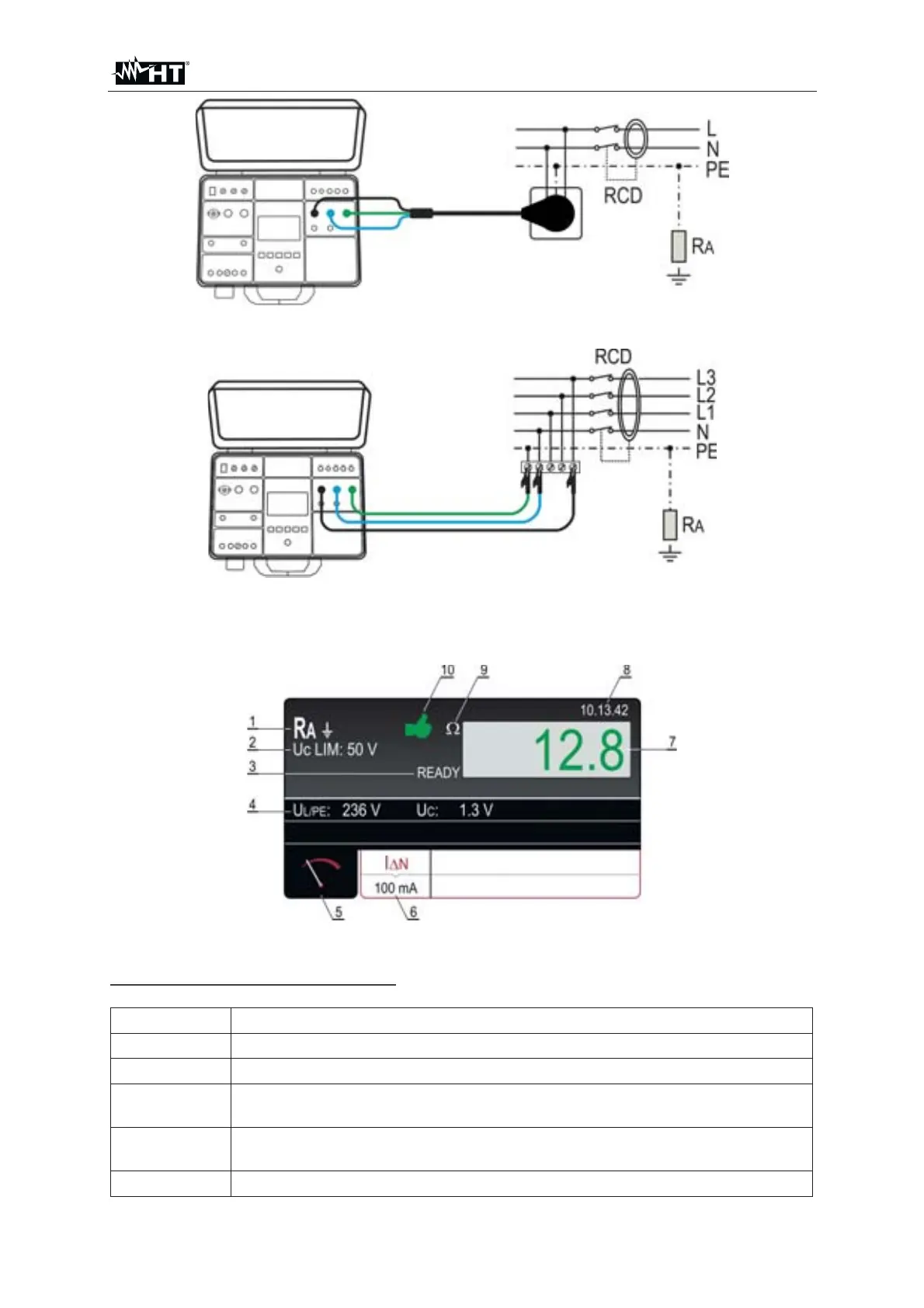

Fig. 52 : Connection with schuko cable for RA
test
Fig. 53 : Connection with test leads for RA
test
6. Press the START/STOP key to perform the measurement. The test result is
shown on the display (see Fig. 54)
Fig. 54 : Visualization of RA test result
Meaning of symbols on the display
Item Description
1 Selected function
2 Selected limit contact voltage (25V or 50V)
3
READY message. It is displayed when mains voltage U
L/PE within
100V ÷ 265V is present
4
Sub-results, mains voltage U
L/PE at which the measurement was
carried out and contact voltage U
C at nominal differential current
5 Measurement screen touch-screen key
