FULLTEST3
EN - 11
4. NOMENCLATURE
4.1. INSTRUMENT DESCRIPTION

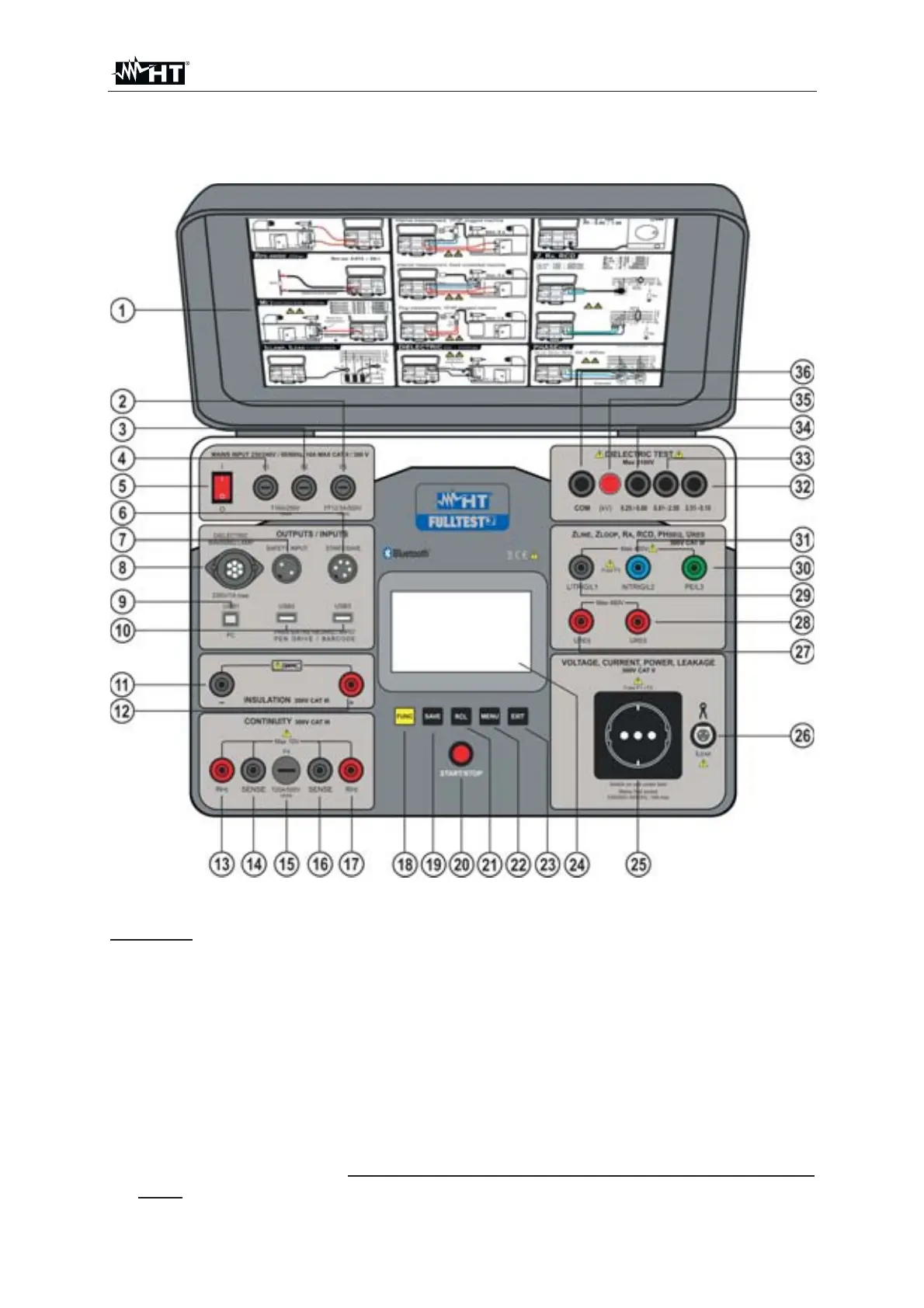

Fig. 2 : Instrument description
CAPTION
1. Quick instruction label under the cover
2. Fuse F3 – Protection LOOP, R
A, RCD measurements
3. General tester fuse F2 – Protection POWER, R
PE and DIELECTRIC
measurements
4. General tester fuse F1 - Protection POWER, R
PE and DIELECTRIC
measurements
5. ON/OFF mains switch
6. Connector for START/SAVE remote control adapter (optional accessory
FT3RMTCT)
7. Connector SAFETY INPUT for connection of external safety switch (optional
accessory FT3SFTSW). It disables DIELECTRIC tests in case the switch is
open
