FULLTEST3
EN - 58
6.7. GLOBAL EARTH RESISTANCE/CONTACT VOLTAGE (R
A )
The instrument allows the measurement of the global earth resistance (a
measurement typically used in TT type electrical systems - civil installations as an
alternative to the earth measurement with the voltamperometric method) by applying
a test current of I'N / 2 in which I'N = rated tripping current of the differential (RCD)
and therefore, in the absence of ground leakage, without causing the intervention of
the RCD.
1. Press the FUNC key and select the R
A function. The following screen is shown
on the display

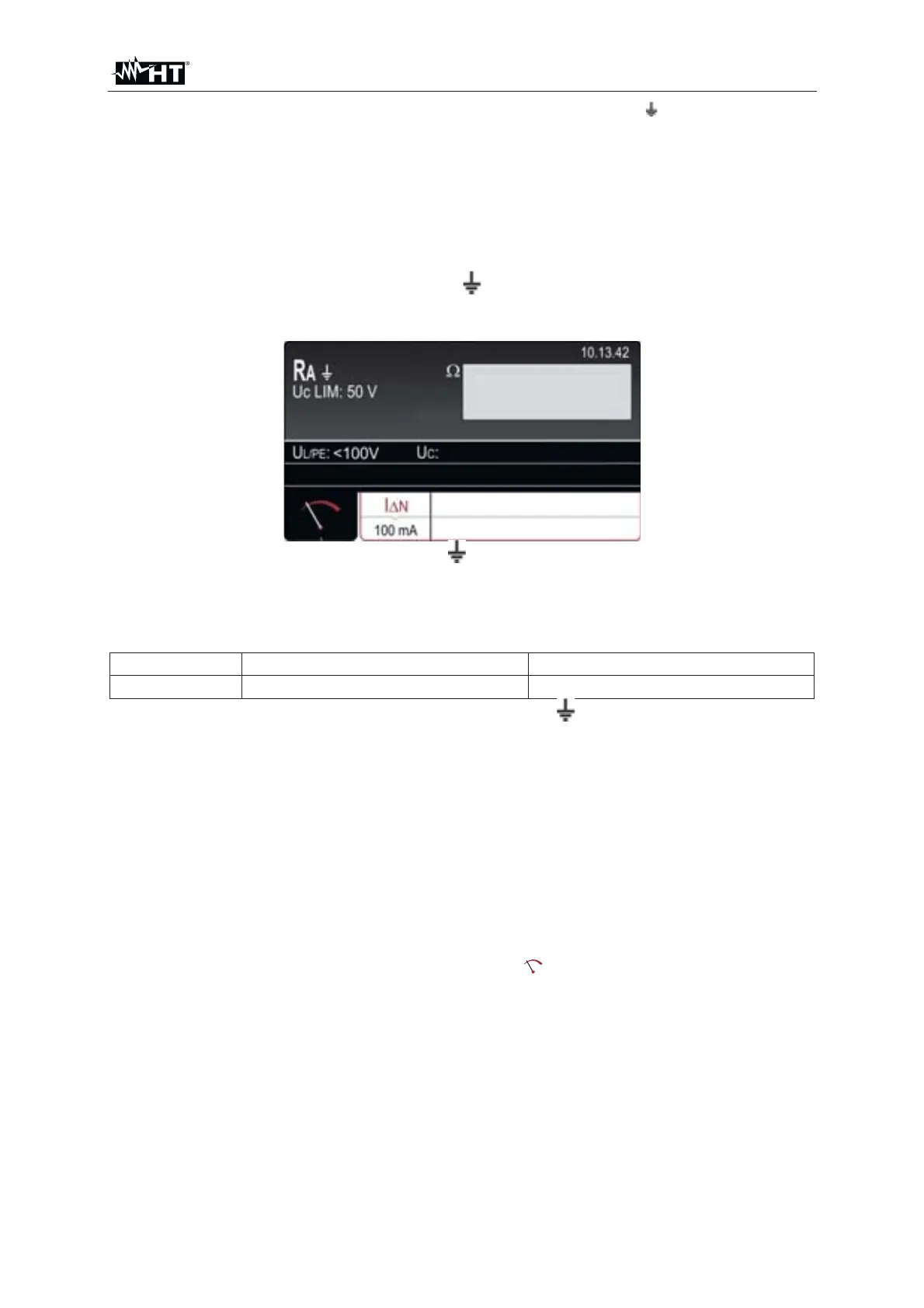

Fig. 51 : RA
initial screen
2. Select the test parameters on the instrument (see Table 9) and carry out the
desired setup
Parameter Description Value
I'N
Nominal trip out current of RCD 10,30,100,300,500,650,1000mA
Table 9 : Setup parameters of RA function
6.7.1. Limit value setting
In accordance with safety guidelines the global earth resistance R
A must be less than
or equal to the U
CLIM/I
N ratio where the limit contact voltage UCLIM can be set to
25V or 50V. Example: U
CLIM selected = 50V, I'N = 30mA Æ RALIM = 1667
How to select limit contact voltage UC LIM. (see § 5.5). Press the MENU o SETUP o
CONTACT VOL. touch-screen keys and select 25V or 50V.
3. Check selected nominal differential current and modify it if needed by pressing
the I
N touch-screen key first.
4. Select measurement screen by pressing the
touch-screen key and check all
settings again
5. Connect the test leads or the Shuko cable according to one of below figures:
