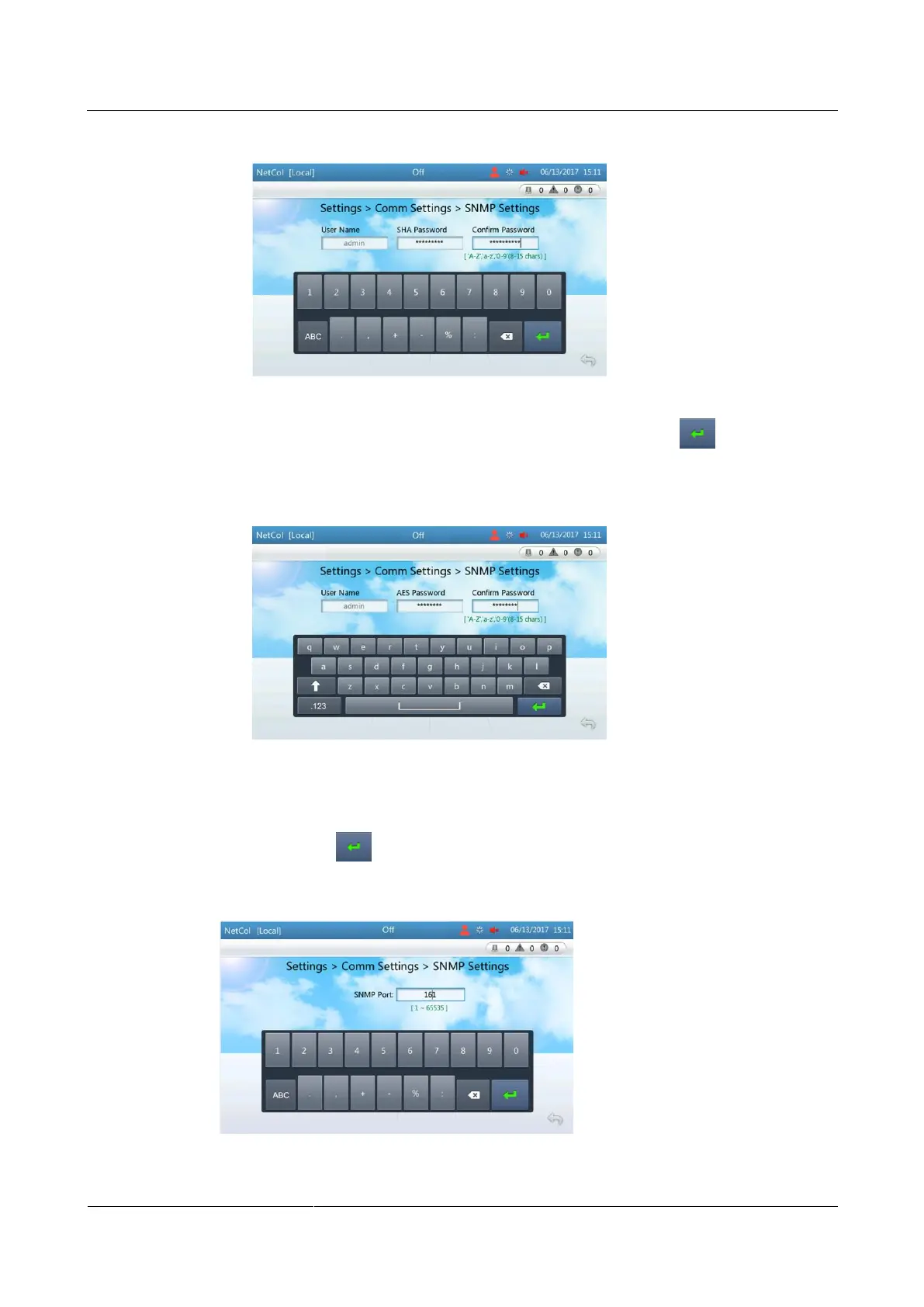

Figure 4-19 Setting an SHA password
4. Set AES Password and Confirm Password as planned, and tap , as shown in
Figure 4-20.
Figure 4-20 Setting an AES password
5. Tap Submit.
Step 5 Tap the text box after SNMP Port, as shown in Figure 4-21. Set SNMP Port to the actual
port number, tap , and then tap Submit.
Figure 4-21 Setting SNMP port
