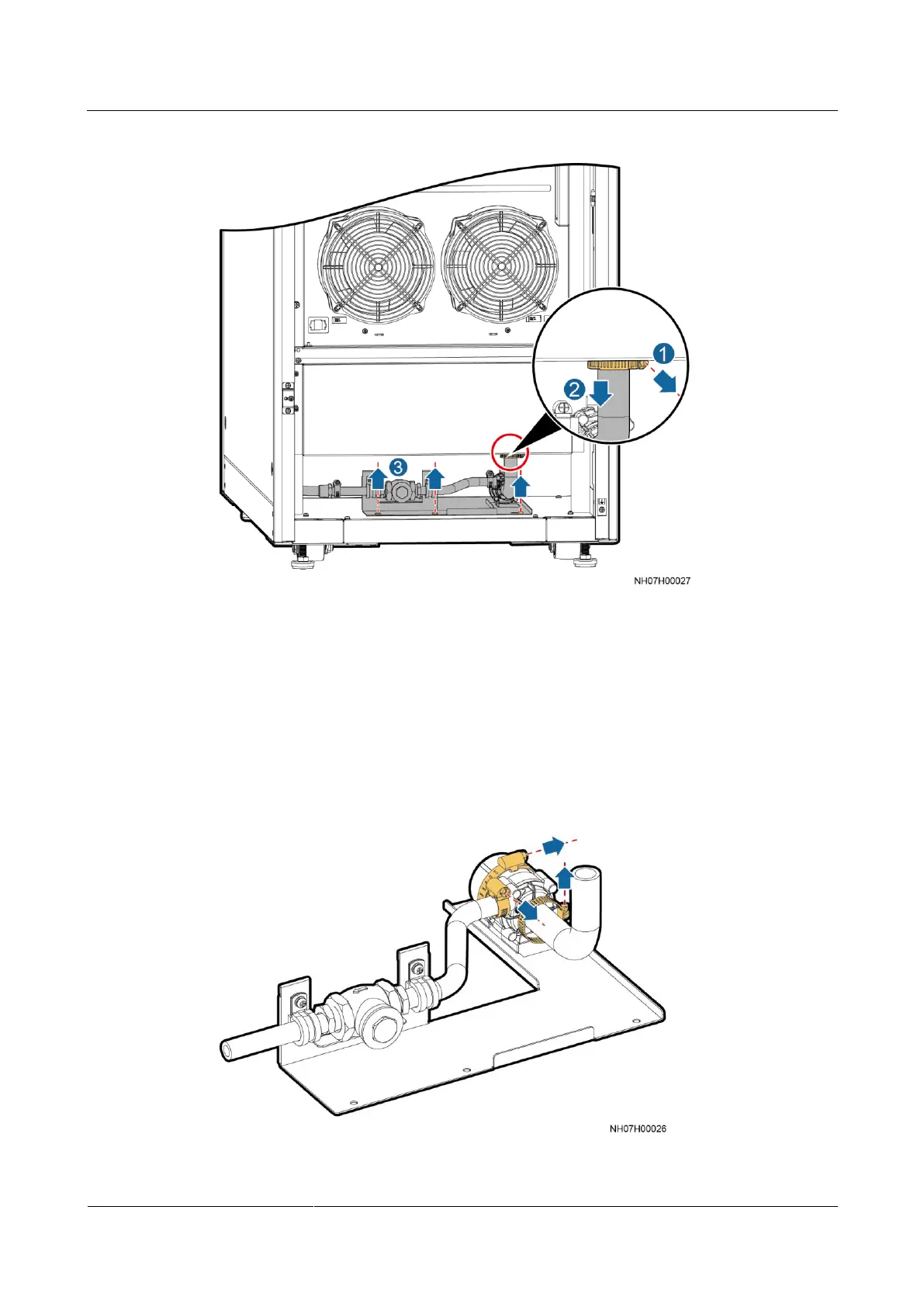

Figure 5-32 Removing a condensate pump assembly
1. Remove the hose clamp at the water pan drain outlet, and remove the hose, as shown by
(1) and (2) in Figure 5-32.
2. Remove the three screws that secure the condensate pump assembly using a socket
wrench, and pull out the condensate pump assembly, as shown by (3) in Figure 5-32.
Step 4 Remove the hose clamps on the condensate pump pipes and the condensate pump using a
flat-head screwdriver, pull out the hose, and take out the condensate pump, as shown in
Figure 5-33.
Figure 5-33 Removing a condensate pump
