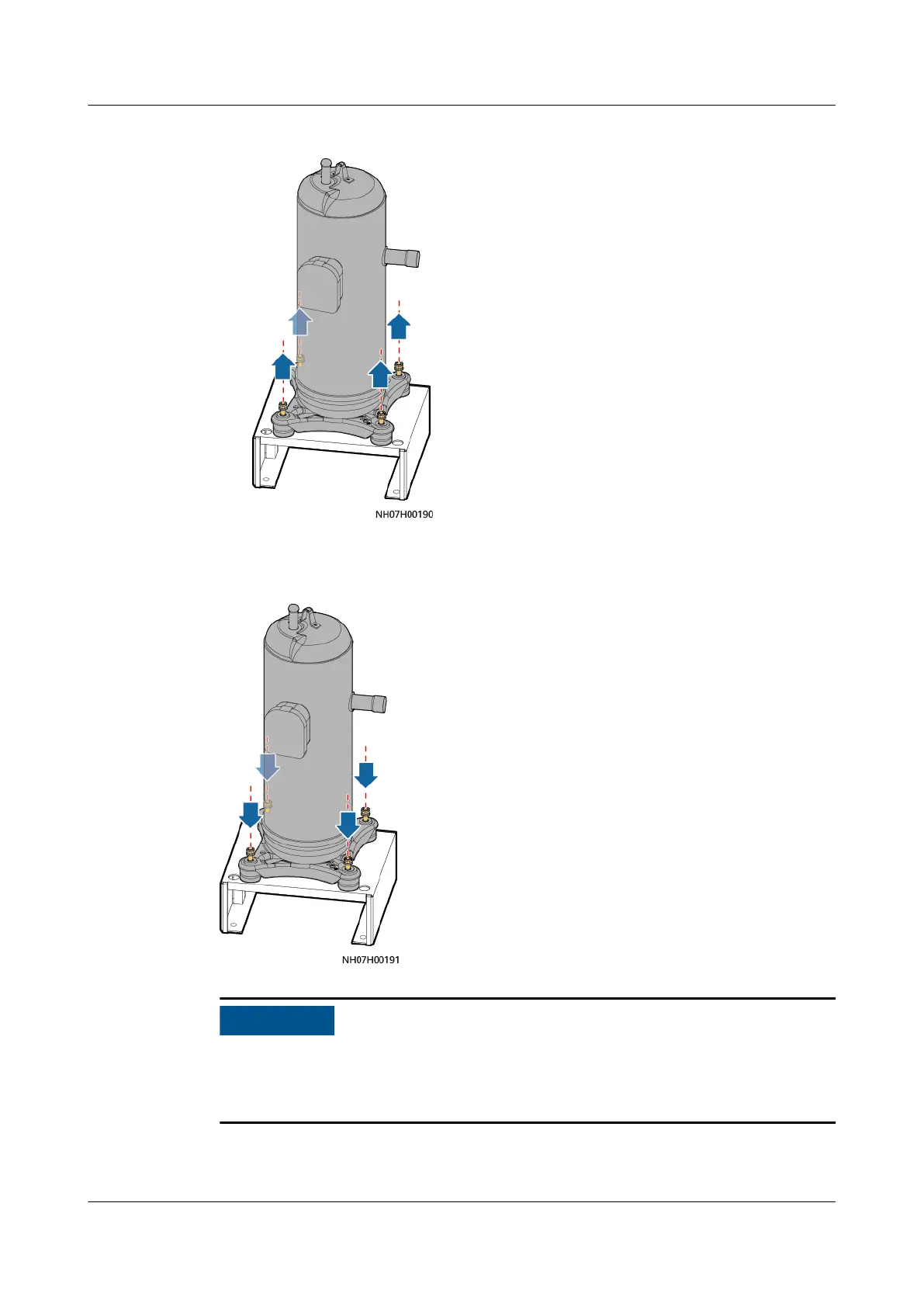

Figure 11-15 Removing a compressor bracket
Step 8 Secure the new compressor to the bracket again using a solid wrench.
Figure 11-16 Installing a compressor bracket
● Seal the screw thread joints in the pipe using sealant.
● After the installation, check that the input power cables of the compressor are
in the same phase sequence as the wiring terminals.
Step 9 Secure the compressor bracket to the cabinet interior using a 13# socket wrench,
as shown by (1) in Figure 11-17.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 11 Parts Replacement
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 261
