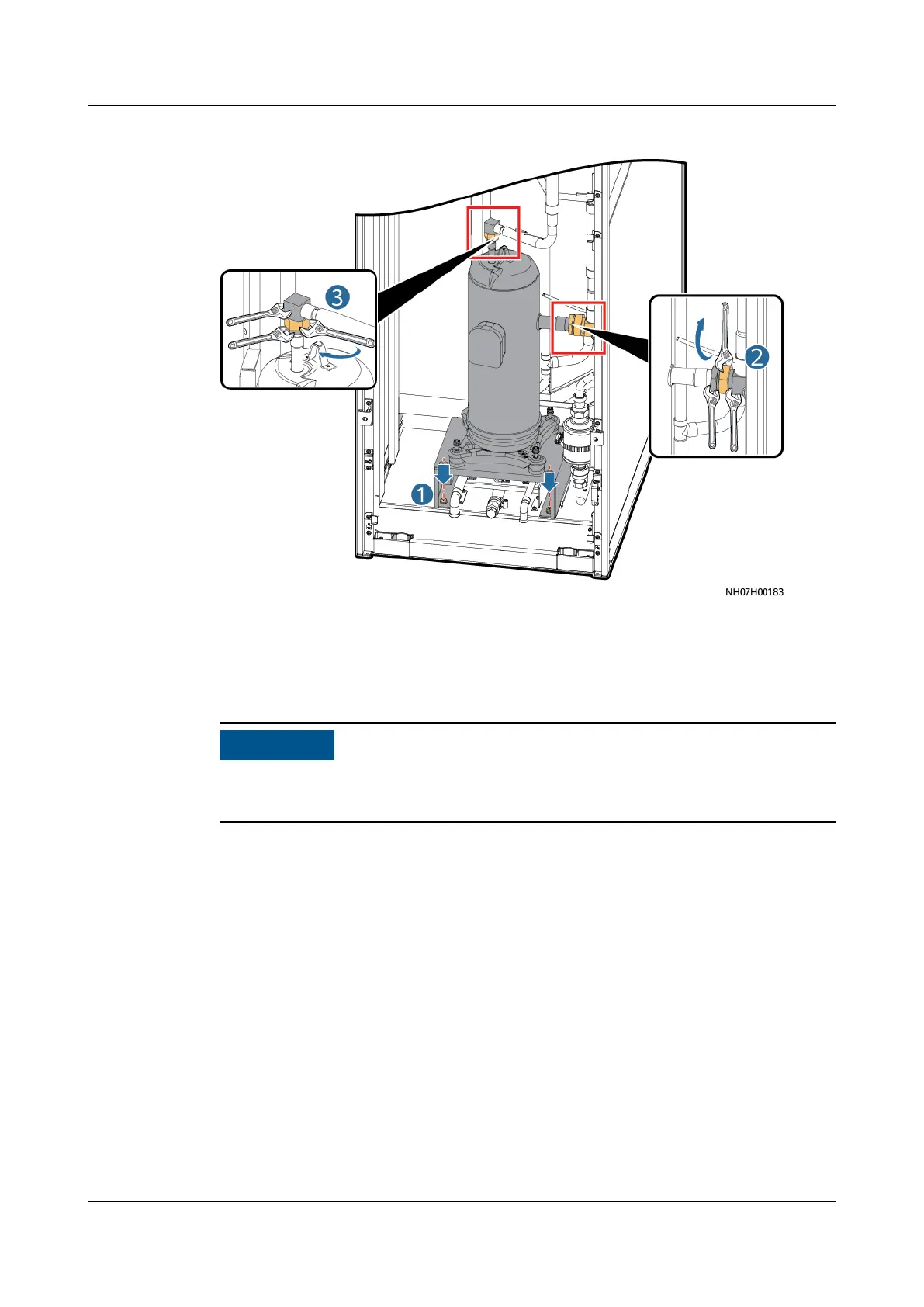

Figure 11-17 Installing a compressor angle valve
Step 10 Apply red glue from the second to the fourth circles of the inner screw thread of
the suction and discharge angle valves. Secure the angle valve nuts and pipe nuts,
as shown by (2) and (3) in Figure 11-17, using two adjustable wrenches, and
tighten the adjustable nuts using a torque wrench.
Tighten the suction angle valve to a torque of 180 N·m and tighten the discharge
angle valve to a torque of 120 N·m.
Step 11 Install the electric heating belt, remove the connection box cover, and reinstall the
cover after the compressor cables are connected.
