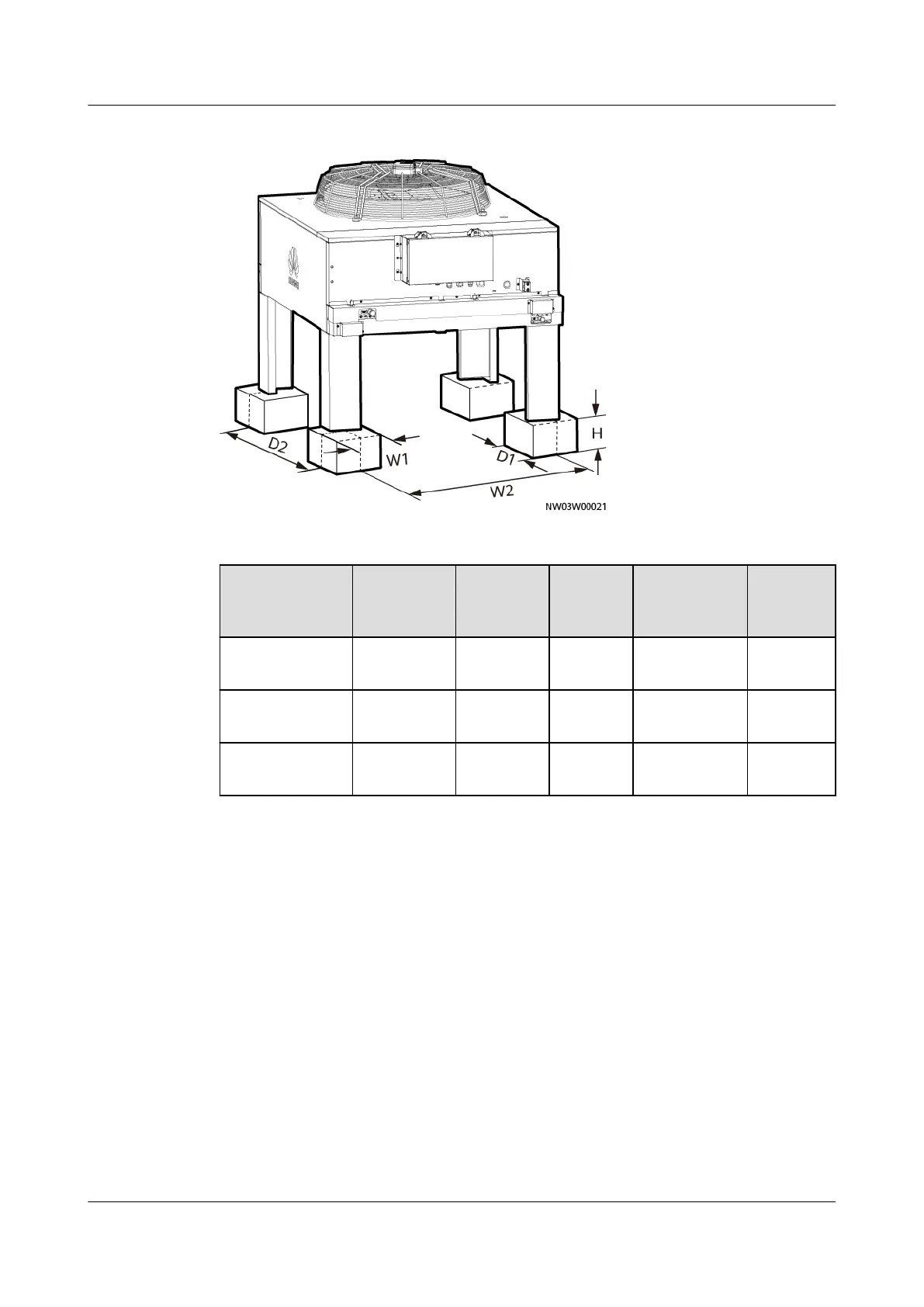

Figure 4-12 Concrete platform dimensions
Table 4-2 Concrete platform dimensions (unit: mm)
Model
Block
Width
(W1)
Block
Depth
(D1)
Block
Height
(H)
Center
Distance
(W2)
Center
Distance
(D2)
NetCol500-
A060
W1 ≥ 250 D1 ≥ 250 150–250 924 1047
NetCol500-
A080
W1 ≥ 250 D1 ≥ 250 150–250 924 1877
NetCol500-
A120
W1 ≥ 250 D1 ≥ 250 150–250 2018 1047
Figure 4-13 shows the mounting holes between the outdoor unit and the
concrete
oor. The mounting holes are long round holes and must be secured
using eight M8x80 stainless expansion bolts.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 42
