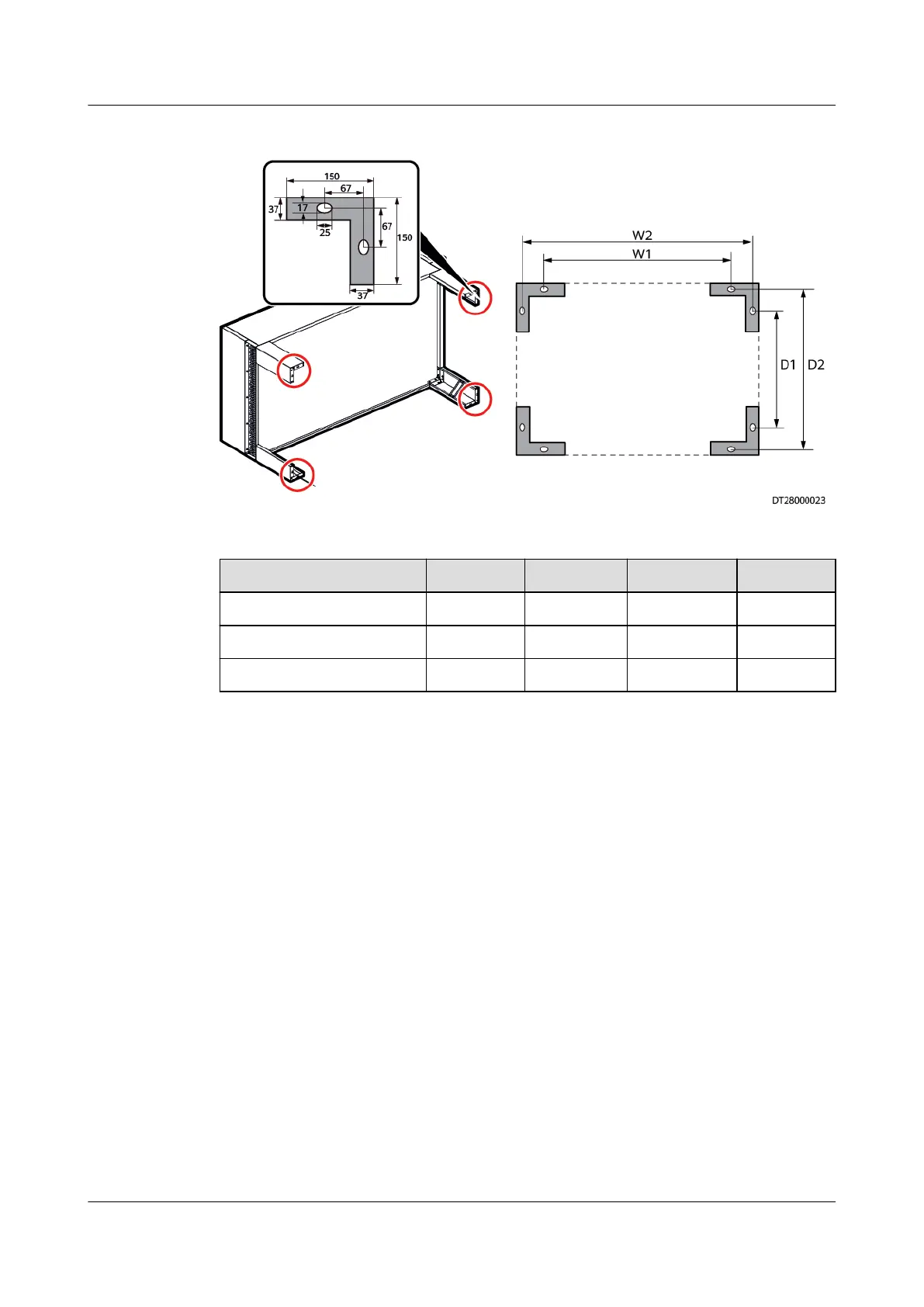

Figure 4-13 Outdoor unit mounting holes
Table 4-3 Port dimensions (unit: mm)
Model W1 W2 D1 D2
NetCol500-A060 1047 1181 924 1058
NetCol500-A080 1877 2011 924 1058
NetCol500-A120 1047 1181 2018 2152
Concrete Platform Requirements for Vertical Installation
For details about how to make concrete platforms to vertically install an outdoor
unit, see Figure 4-14. An outdoor unit must be xed to a concrete platform or a
base using four M8x80 stainless expansion bolts and bracket angles.
