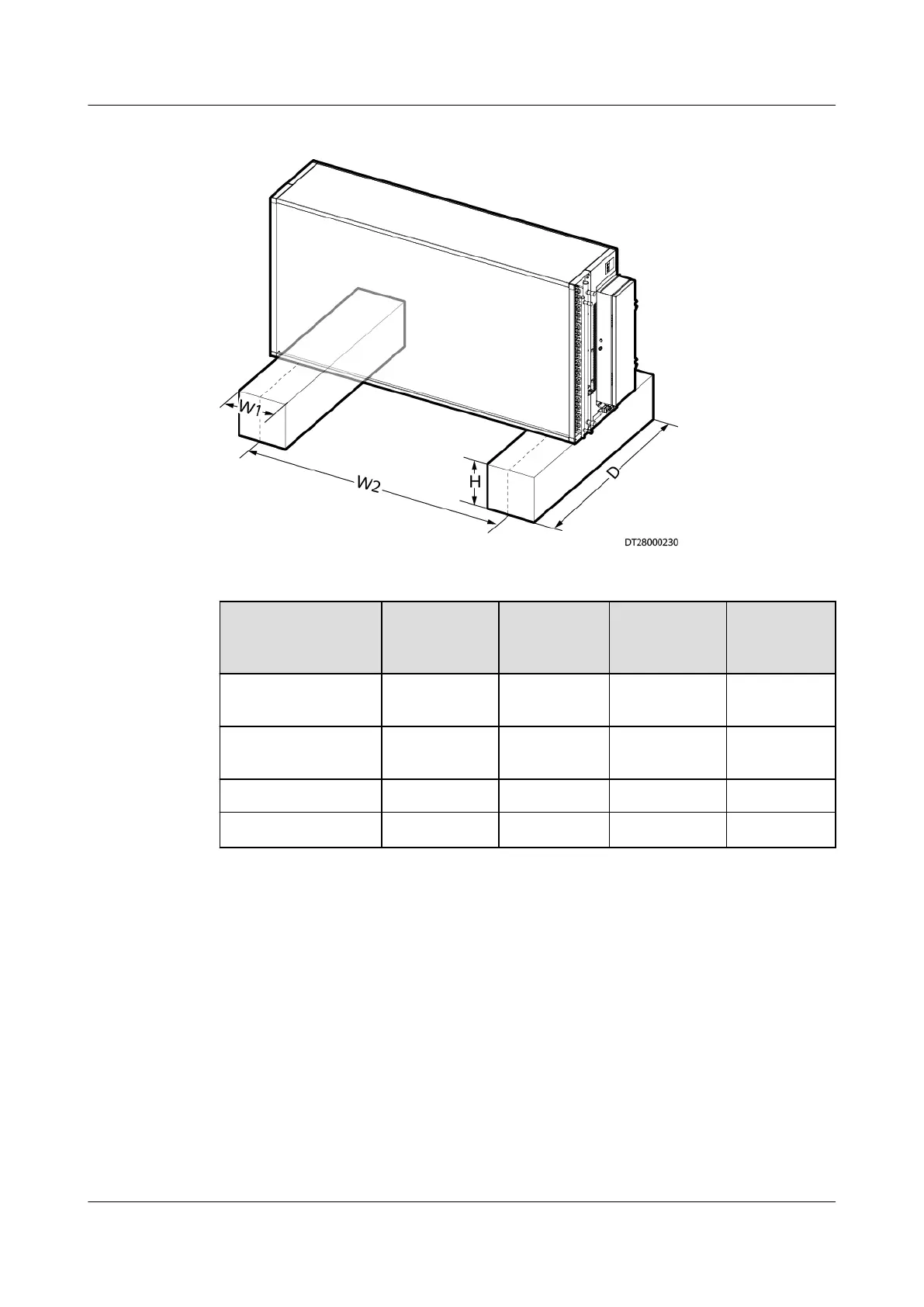

Figure 4-14 Concrete platform dimensions
Table 4-4 Concrete platform dimensions (unit: mm)
Model
Block Width
(W1)
Block
Depth (D)
Block
Height (H)
Center
Distance
(W2)
NetCol500-A060
(Class B)
W1 ≥ 250 D ≥ 500 150–250 1036.5
NetCol500-A060
(Class C)
W1 ≥ 250 D ≥ 500 150–250 977
NetCol500-A080 W1 ≥ 250 D ≥ 500 150-250 1744.5
NetCol500-A120
a
W1 ≥ 250 D ≥ 500 150–250 2011
a: A base is required for securing. For details about securing during vertical
installation, see 4.5.3.3 Vertical Installation Scenario (NetCol500-A120).
Figure 4-15 and Figure 4-16 show the mounting hole for outdoor unit vertical
installation.
