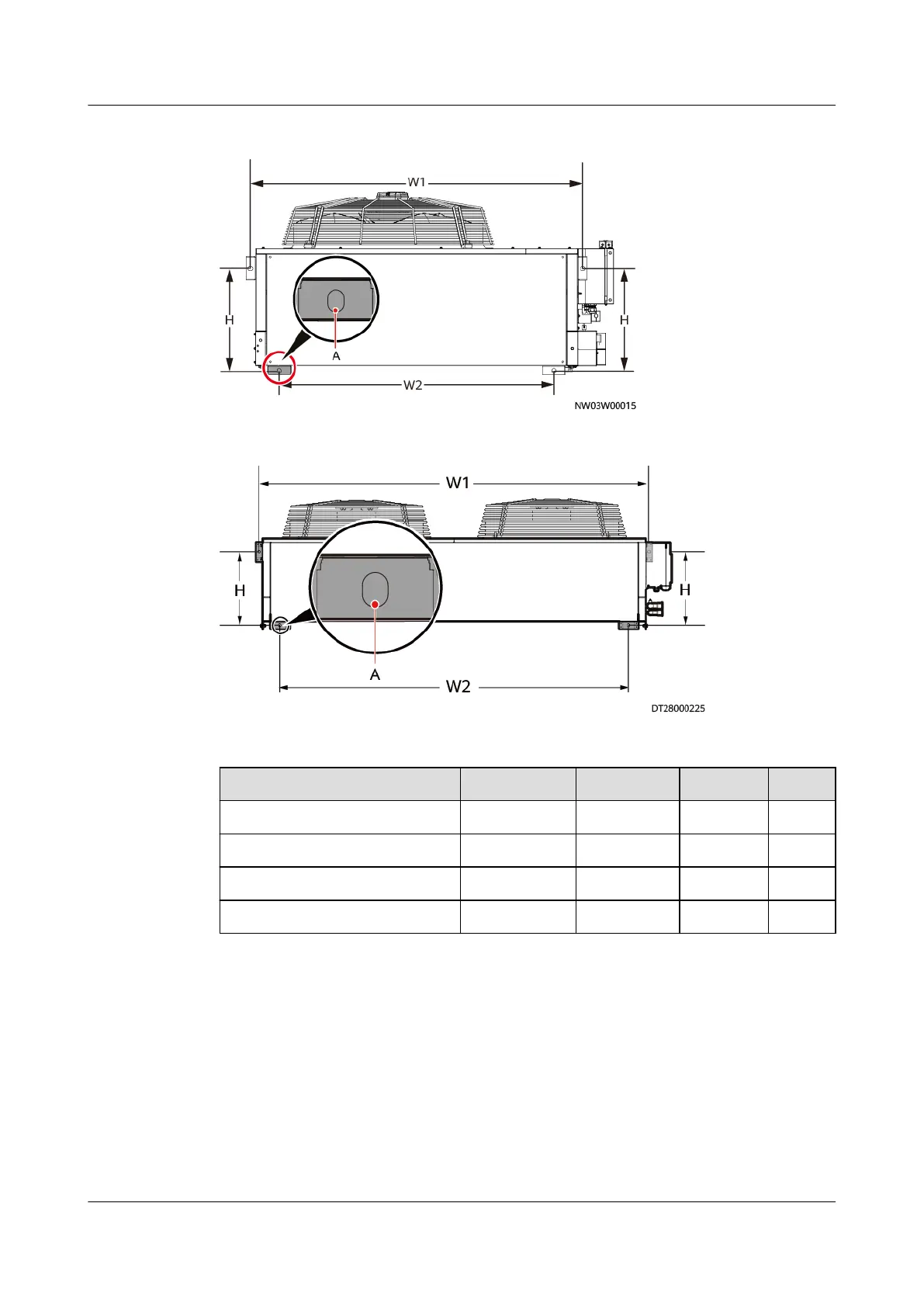

Figure 4-15 NetCol500-A060/120 outdoor unit mounting hole
Figure 4-16 NetCol500-A080 outdoor unit mounting hole
Table 4-5 Port dimensions (unit: mm)
Model
W1 W2 H A
NetCol500-A060 (Class B) 1257 1036.5 387 Φ12
NetCol500-A060 (Class C) 1260 977 447 Φ14
NetCol500-A080 2090 1744.5 387 Φ12
NetCol500-A120 1257 1036.5 387 Φ12
(Optional) Space Dimensions for a Low temperature Component
Low temperature components can only be installed horizontally. Before installing,
prepare concrete platforms and drill holes by referring to the instructions in Figure
4-17.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 45
