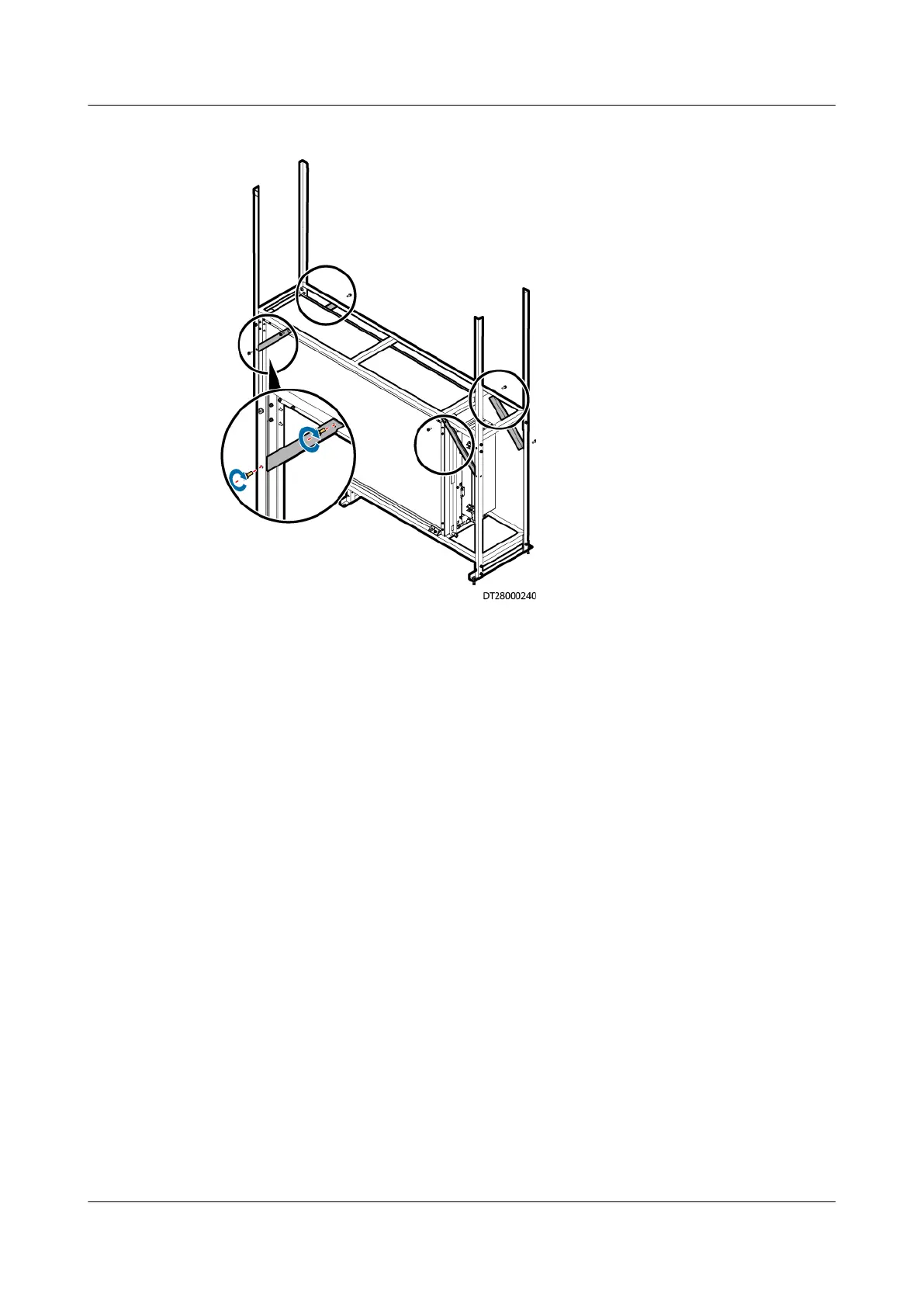

Figure 4-46 Installing slanting beams
Step 5 Secure the three beams on the top to the base using six M10x30 stainless steel
bolts, as shown in Figure 4-47.
