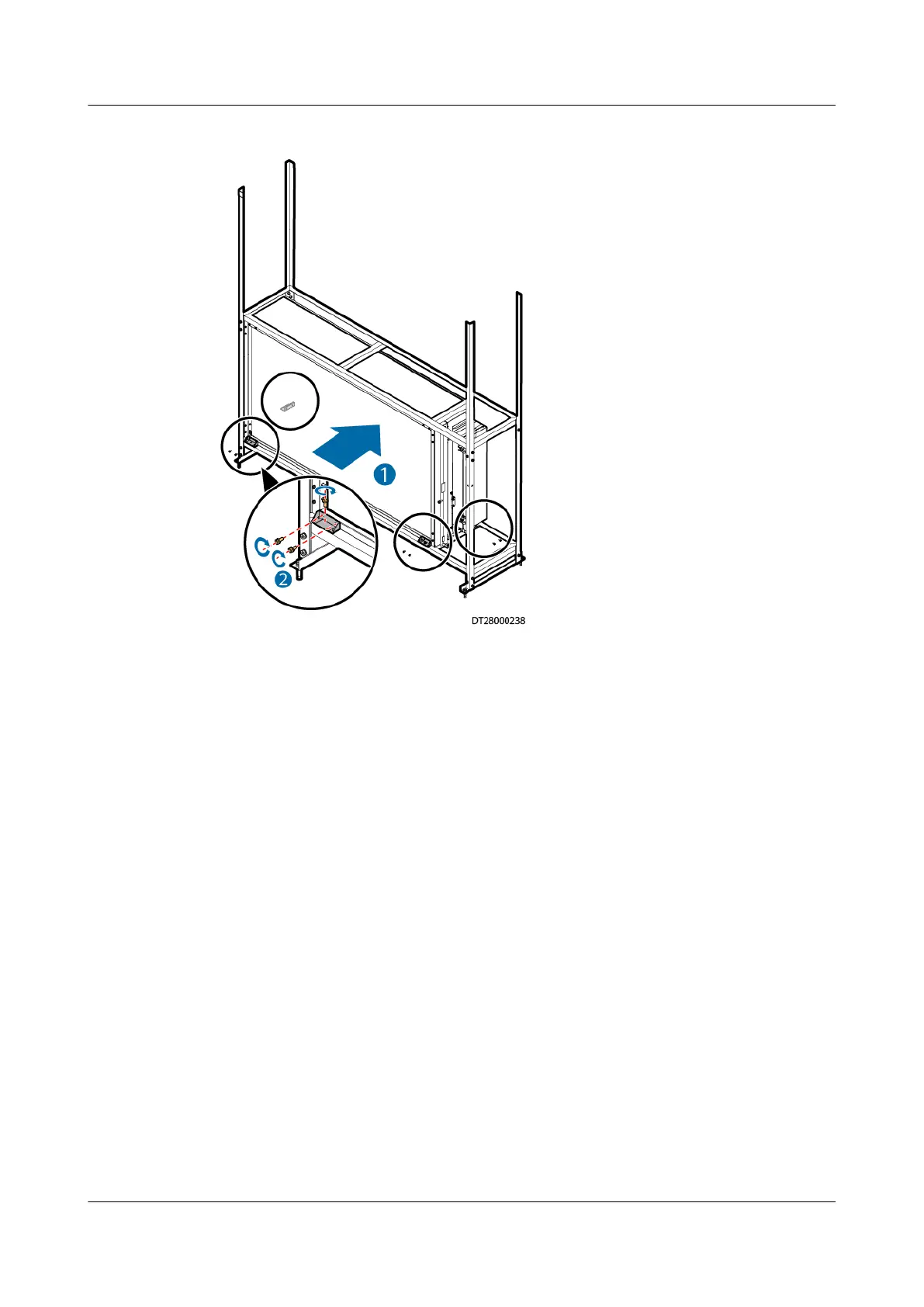

Figure 4-45 Securing an outdoor unit onto the rst-layer base
1. Lift the outdoor unit from the front onto the rst-layer base, as shown by (1)
in Figure 4-45.
2. Secure the outdoor unit to the base using four bracket angles on the side
panel. One M10x30 stainless steel bolt is used on the base side, and two
M6x16 stainless steel bolts are used on the outdoor unit side, as shown in
Figure 4-45.
Step 4 Secure four slanting beams to the base using eight M10x30 stainless steel bolts, as
shown in Figure 4-46.
