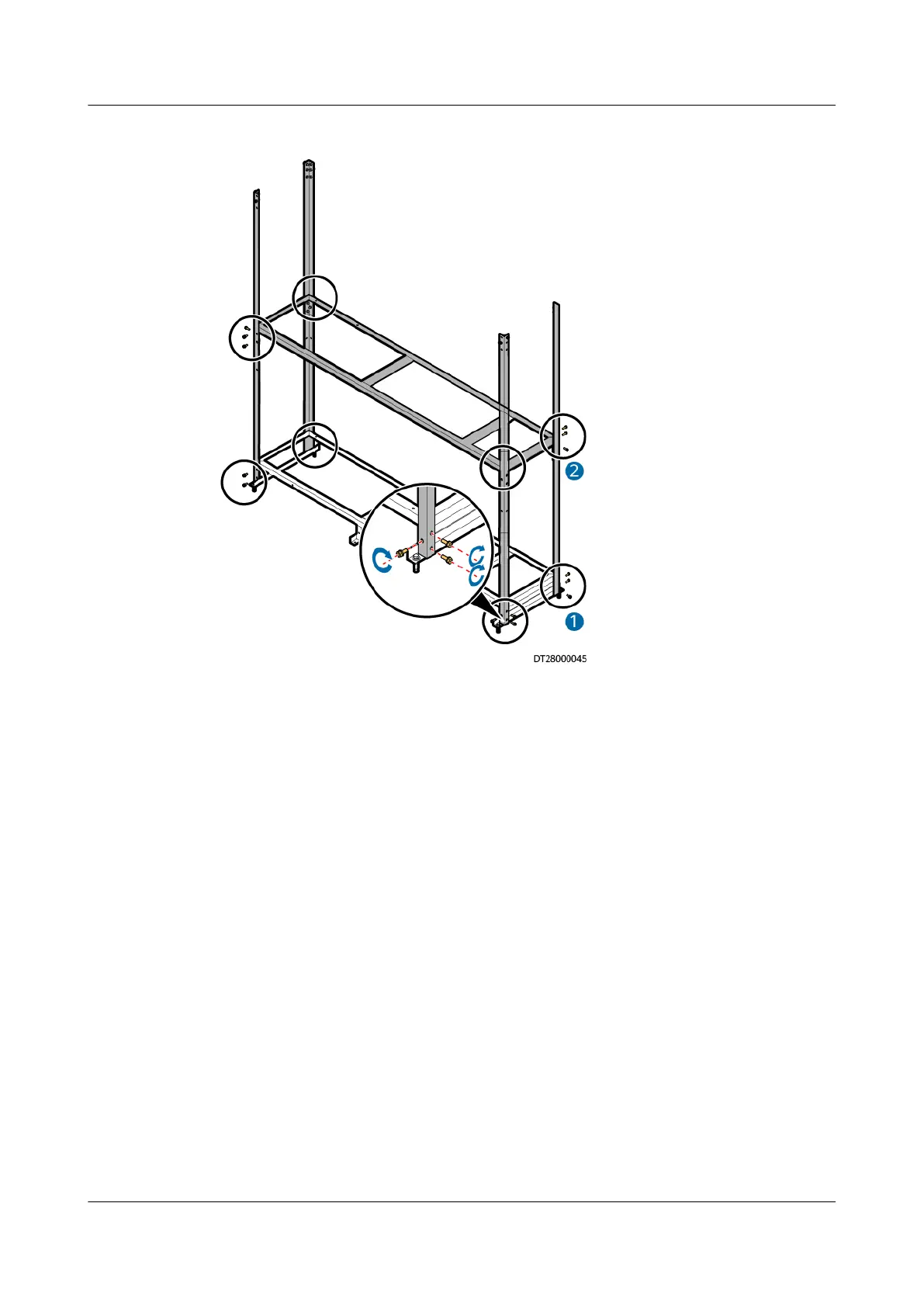

Figure 4-44 Securing columns
1. Secure the four columns to the rst-layer base using twelve M10x30 stainless
steel bolts, as shown by (1) in Figure 4-44.
2. Secure the second-layer base to the middles of the four columns using twelve
M10x30 stainless steel bolts, as shown by (2) in Figure 4-44.
Step 3 Secure an outdoor unit onto the
rst-layer base.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 73
