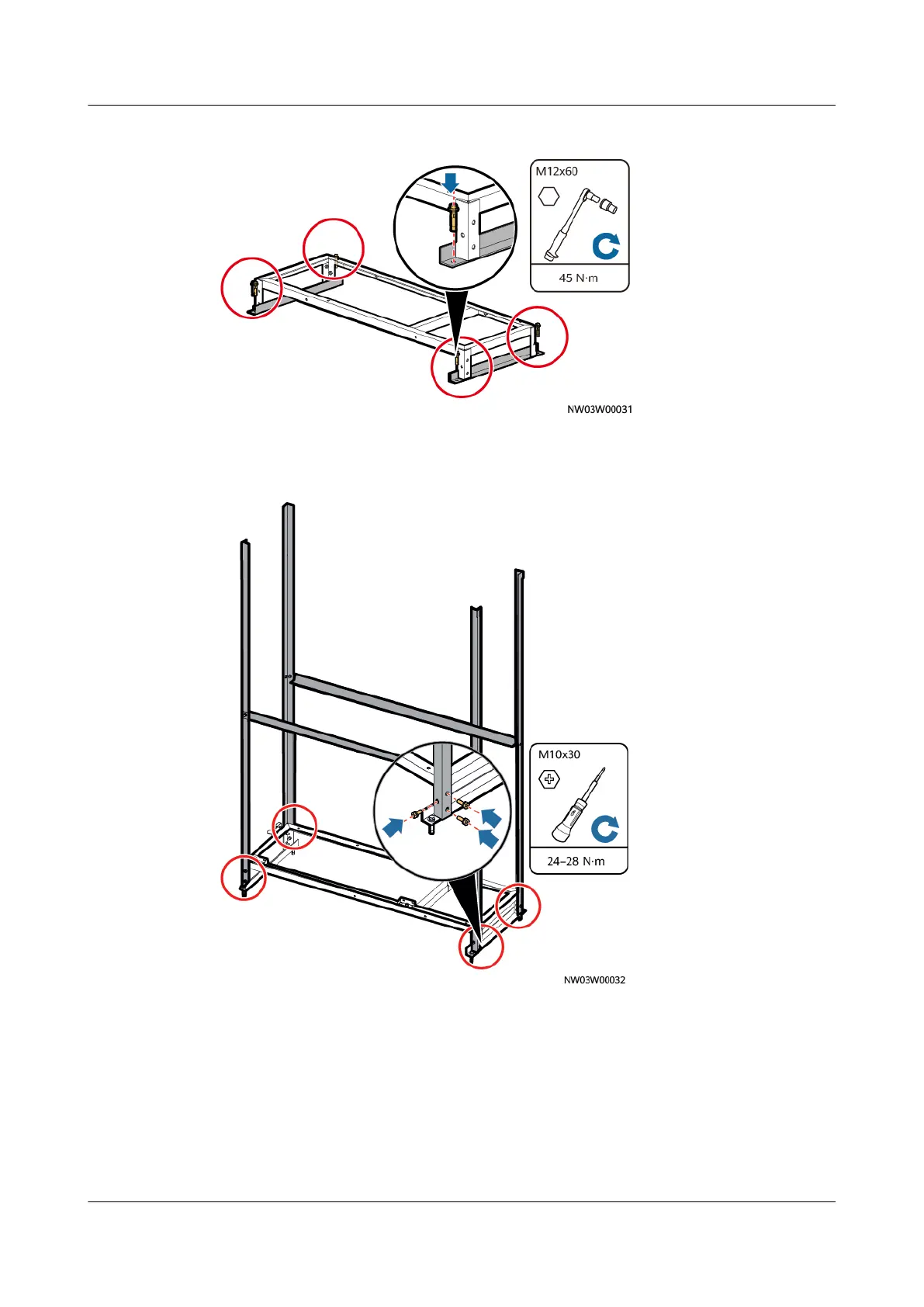

Figure 4-49 Securing a base
Step 2 Secure the four columns to the base using twelve M10x30 stainless steel bolts.
Figure 4-50 Securing columns
Step 3 Secure an outdoor unit onto the base.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 78
