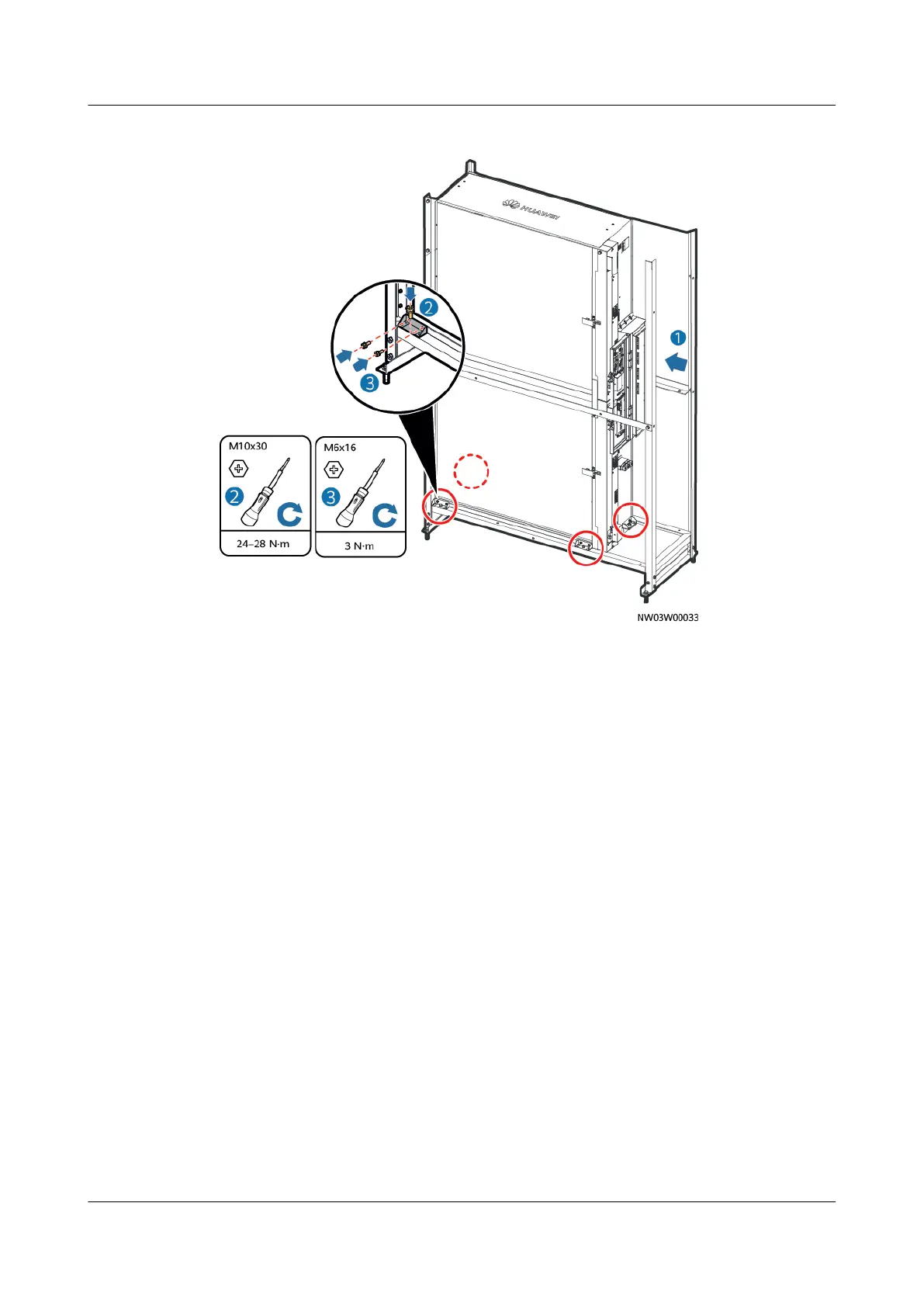

Figure 4-51 Installing an outdoor unit
1. Lift the outdoor unit from the side onto the base, as shown by (1) in Figure
4-51.
2. Secure the outdoor unit to the base using four bracket angles on the side
panel. One M10x30 stainless steel bolt is used on the base side, and two
M6x16 stainless steel bolts are used on the outdoor unit side, as shown in
Figure 4-51.
Step 4 Secure the four beams on the top to the base using eight M10x30 stainless steel
bolts, and secure the top of outdoor unit to the base as shown in Figure 4-52.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 79
