After the conductor is fed into the OT terminal, the protruding part of the
conductor, or L2 in Figure 4-85, must not be longer than 2 mm (0.08 in.).
4. Crimp the joint parts of the bare crimping terminal and the conductor, as
shown in Figure 4-86.
The shapes of crimped parts may vary with the crimping dies.

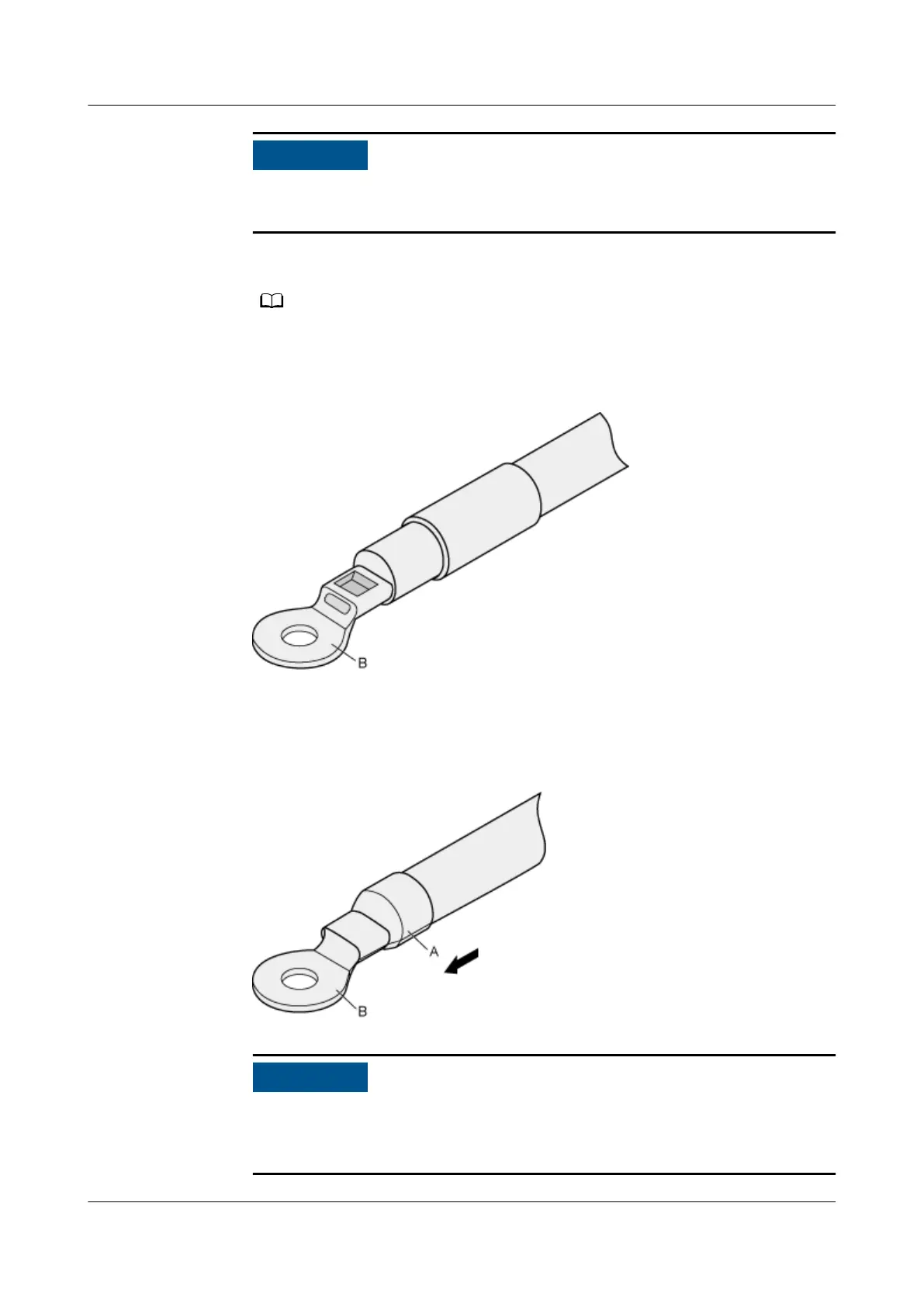

Figure 4-86 Crimping the joint parts of the bare crimping terminal and the
conductor (OT terminal)
5. Push the heat shrink tubing (A) toward the connector until the tube covers
the crimped part, and then use a heat gun to heat the tube, as shown in
Figure 4-87.
Figure 4-87 Heating the heat shrink tubing (OT terminal)
Stop heating the shrink tubing when the connector is securely locked in the
shrink tubing. Do not heat the shrink tubing too long as this may damage the
insulation coating.
