Huawei NetEngine 8000 F User Manual

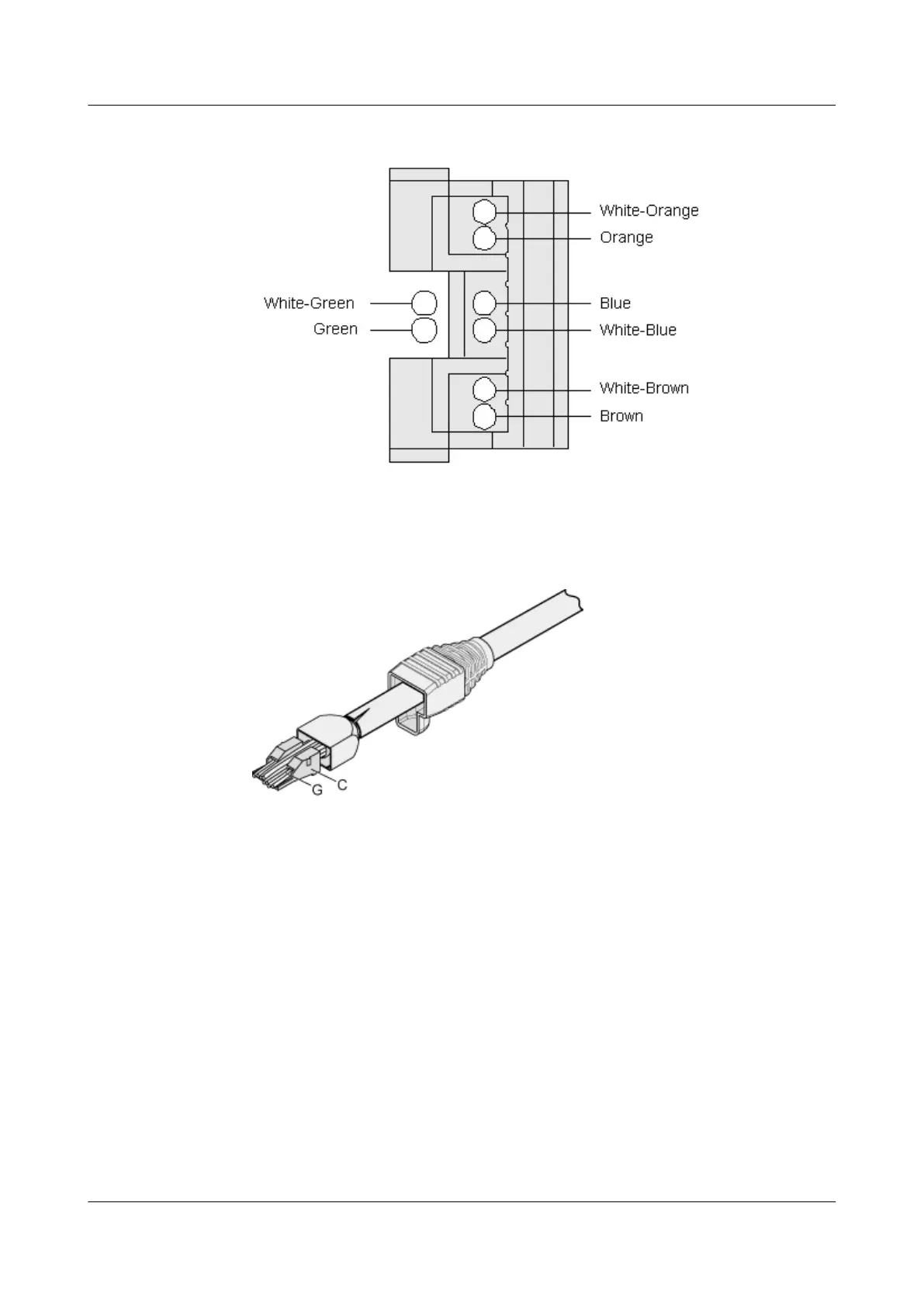

Figure 4-109 Cable locations in a wire holder
6. Align the four pairs of cables in the holder, as shown in Figure 4-110. The
connections between the wires and the pins are shown in Figure 4-111 and
listed in Table 4-23.
Figure 4-110 Four pairs of cables on a wire holder
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 461
