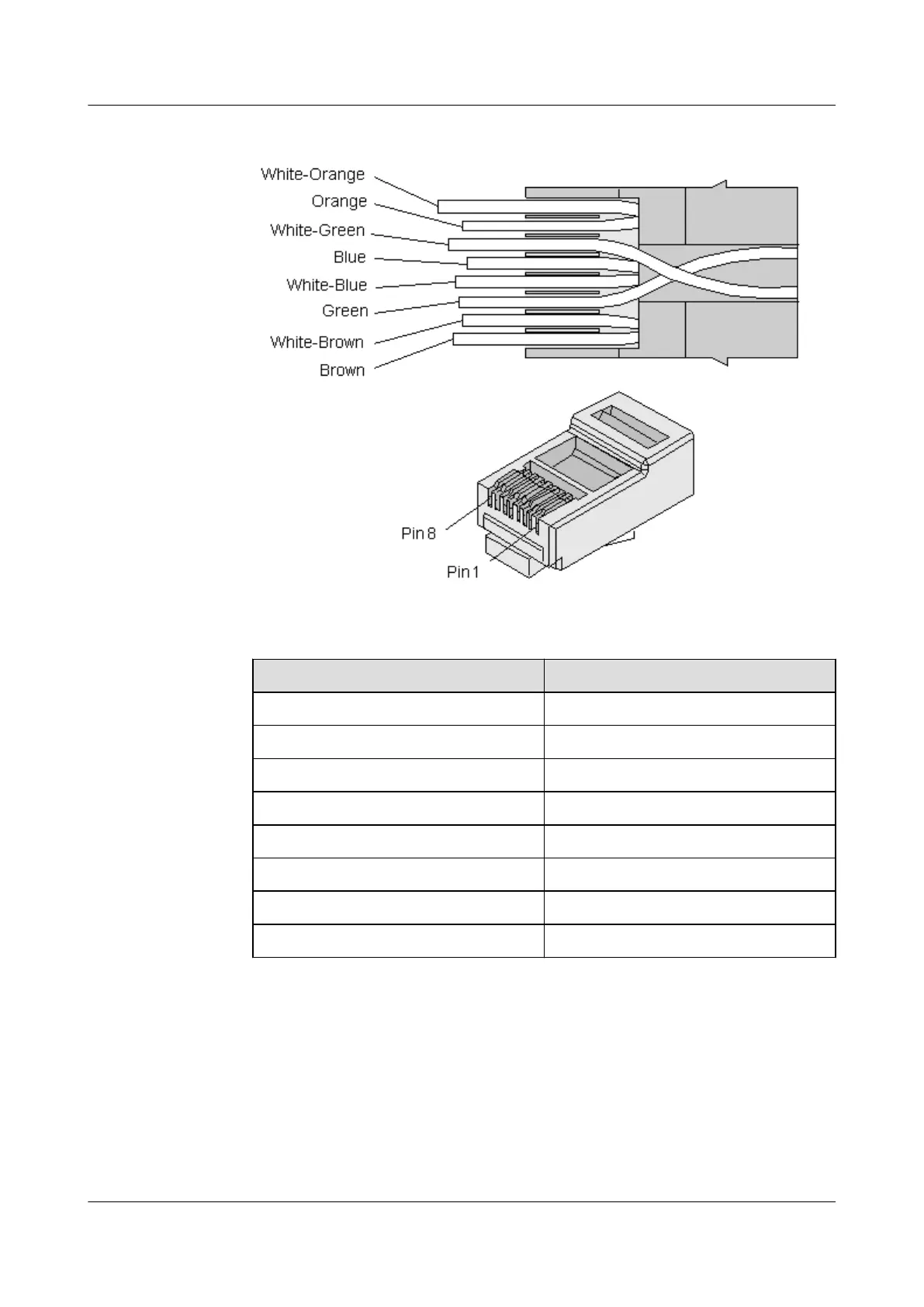

Figure 4-111 Connections between wires and pins
Table 4-23 Connections between wires and pins (using a straight-through
cable as an example)
Matching Pins of Wires
Wire Color
1 White-Orange
2 Orange
3 White-Green
4 Blue
5 White-Blue
6 Green
7 White-Brown
8 Brown
7. Cut
o the surplus cables along the lower edge of the wire holder, as shown
in Figure 4-112.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 462
