Huawei NetEngine 8000 F User Manual

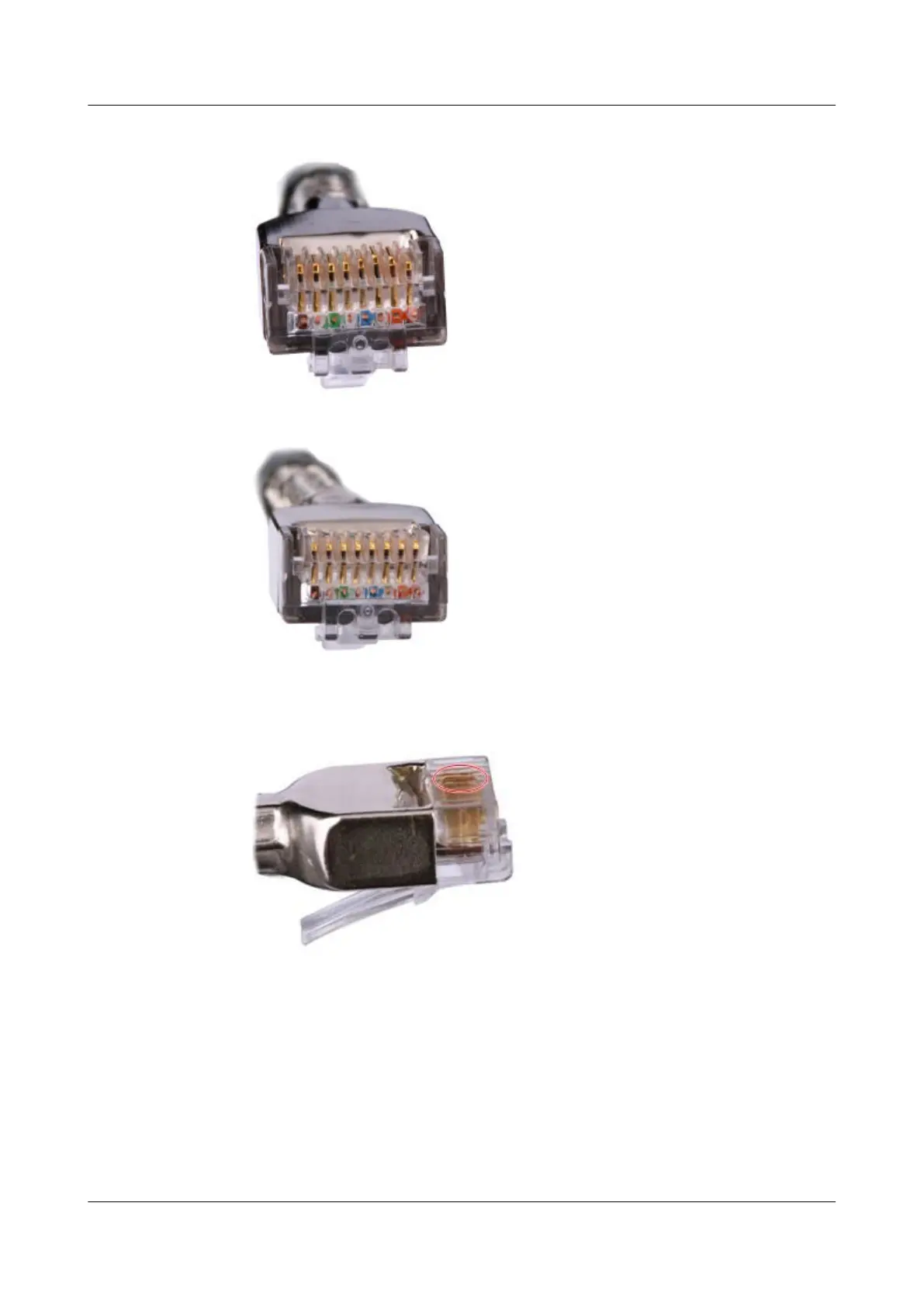

Figure 4-120 Contact strips of dierent heights
Figure 4-121 Contact strips of the same height
2. Hold an RJ45 connector and turn it 45°. Observe the top edges of the metal
contact strips. Figure 4-122 shows an unqualied piece.
Figure 4-122 Unparallel contact strips of dierent heights
3. Check whether the contact strips are clean. If they are not clean and the dirt
cannot be removed, replace it with a new RJ45 connector. Figure 4-123 shows
an
unqualied piece.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 467
