Figure 4-123 Dirt on a contract strip
4. Check whether the contact strips and the plastic separators are well aligned
and intact. If a separator is skewed and cannot be
xed, replace it with a new
RJ45 connector. Figure 4-124 shows an unqualied piece.
Figure 4-124 Skewed plastic separators
5. Hold the connector with the side facing towards you, and check whether you
can see the cross-sections of the wires. Ensure that the ends of the wires are
in good contact with the edge of the RJ45, and that the contact strip blade
extends beyond the ends of the wires and is crimped with the wires. If not,
replace the connector. Figure 4-125 shows an
unqualied piece.

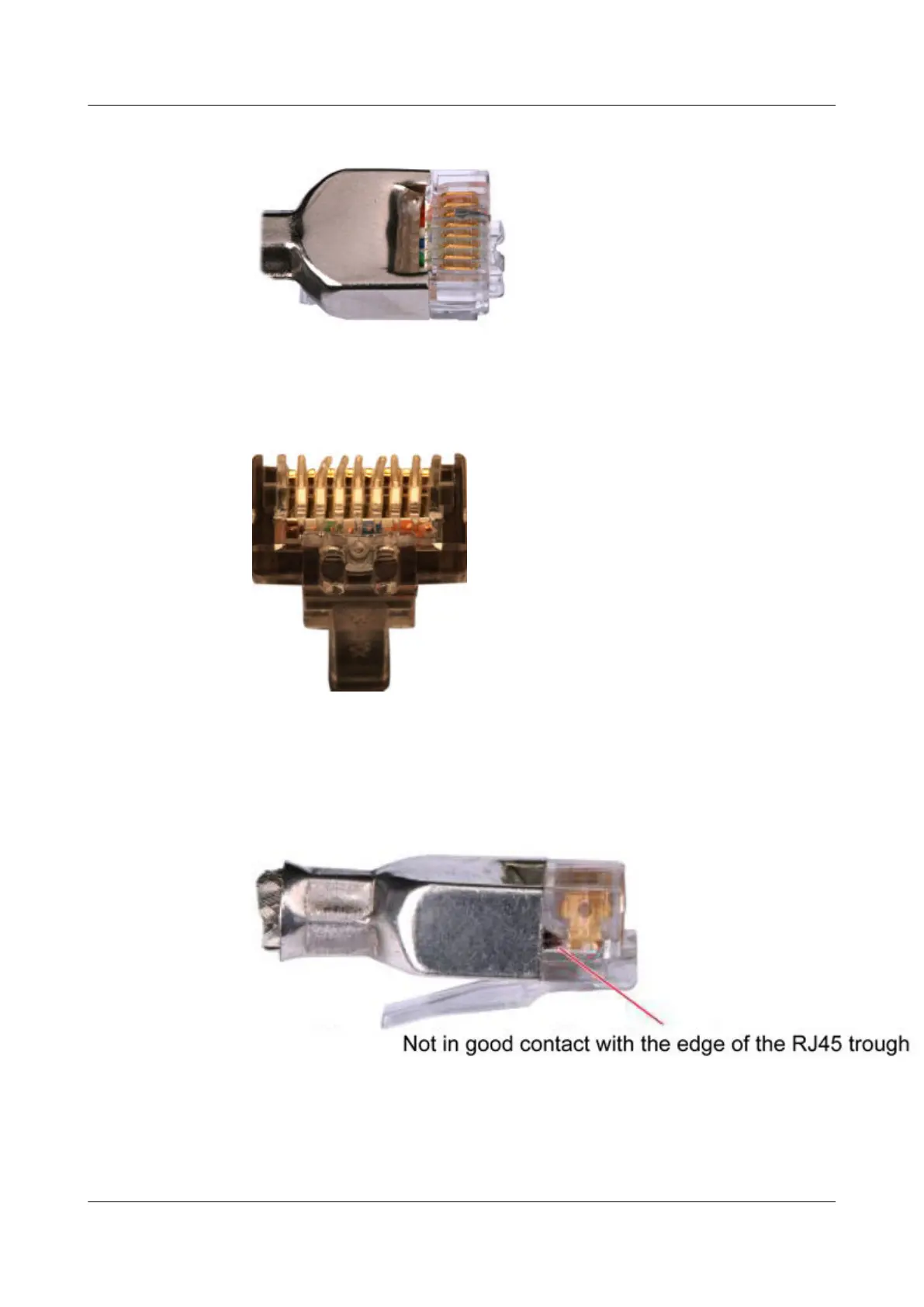

Figure 4-125 Wires not in good contact with the edge of the RJ45
Testing the Connection of Assembled Cables
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 468
