Type and Structure
Label for Signal Cables

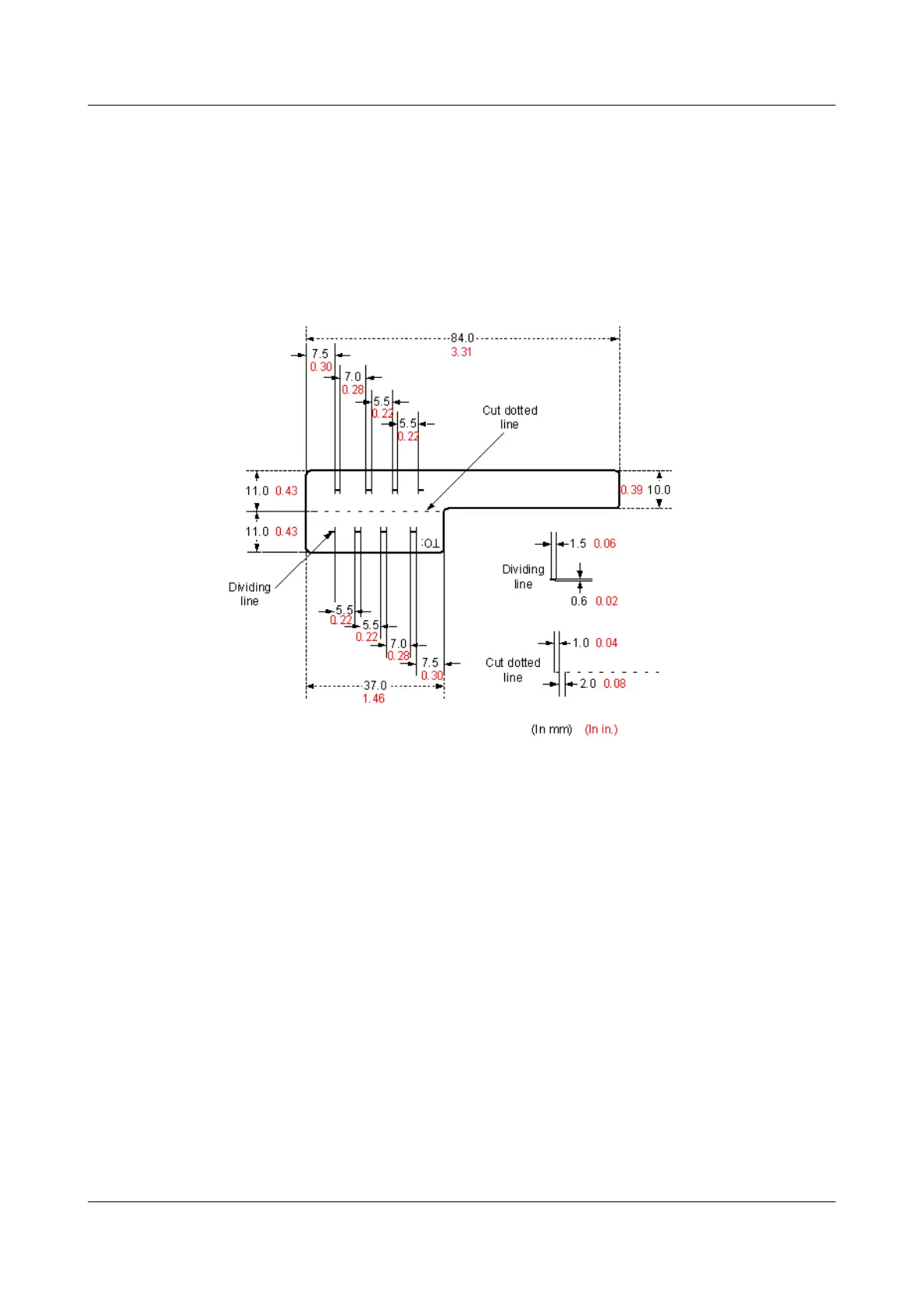

The label for signal cables is L-shaped with xed dimensions, as shown in Figure
4-171.
Figure 4-171 Label for signal cable
To specify more clearly the position of a cable, use the dividing lines on the label.
For example, there is a dividing line between the cabinet number and the chassis
number, and another one between the chassis number and the slot number. Each
dividing line is light blue (Pantone 656c) and 1.5 mm x 0.6 mm (0.06 in. x 0.02
in.).
The cut dotted line helps to fold the label when
axed to the cable, and its size is
1 mm x 2 mm (0.04 in. x 0.08 in.).
The word "TO:" (upside down in the
gure) at the lower right corner of the label
is used to identify the opposite end of the cable on which the label is axed.
Power Cable Label
The label for power cables should be attached to the
identication plate on the
cable ties that are attached to the cable. The identication plate has an embossed
area 0.2 mm x 0.6 mm (0.008 in. x 0.02 in.) around (symmetric on both sides), and
the area in the middle is for
axing the label, as shown in Figure 4-172.
