Procedure
1. Strip a part of the insulation to expose the cable conductor with a length of L,
as shown in Figure 4-292. The recommended values of L are listed in Table
4-70.

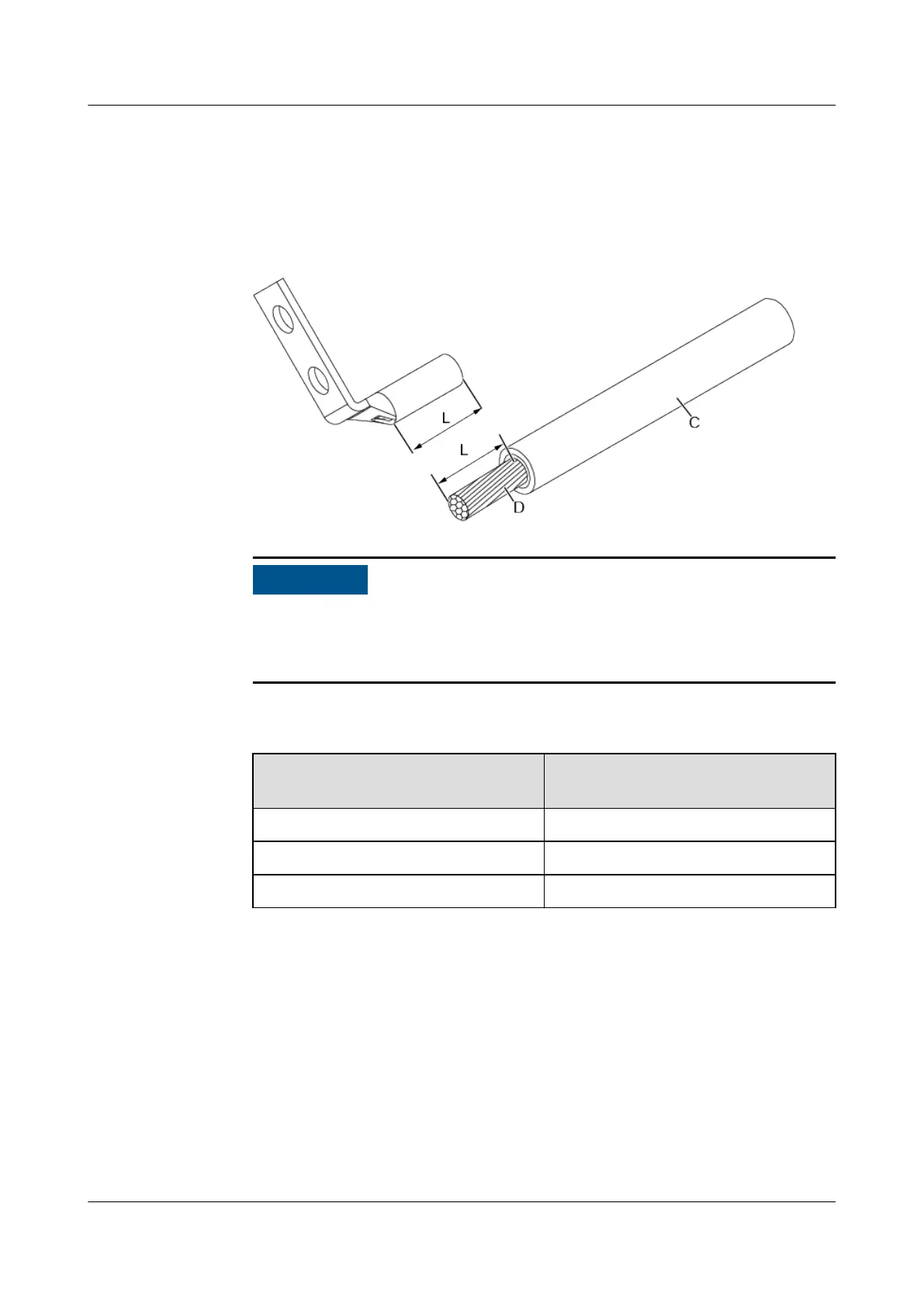

Figure 4-292 Stripping a power cable (JG2 terminal)
● When you strip a power cable, do not damage the conductor of the cable.
● If the bare crimping terminal is not provided by Huawei, you can adjust the
value of L as required
Table 4-70 Mapping between the cross-sectional area of the conductor and
the value of L
Cross-Sectional Area of Conductor
(mm
2
(in.
2
))
Value of L (mm (in.))
16 (0.025) 13 (0.51)
25 (0.039) 14 (0.55)
35 (0.054) 16 (0.63)
2. Put the heat shrink tubing onto the bare crimping terminal, as shown in
Figure 4-293.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 656
