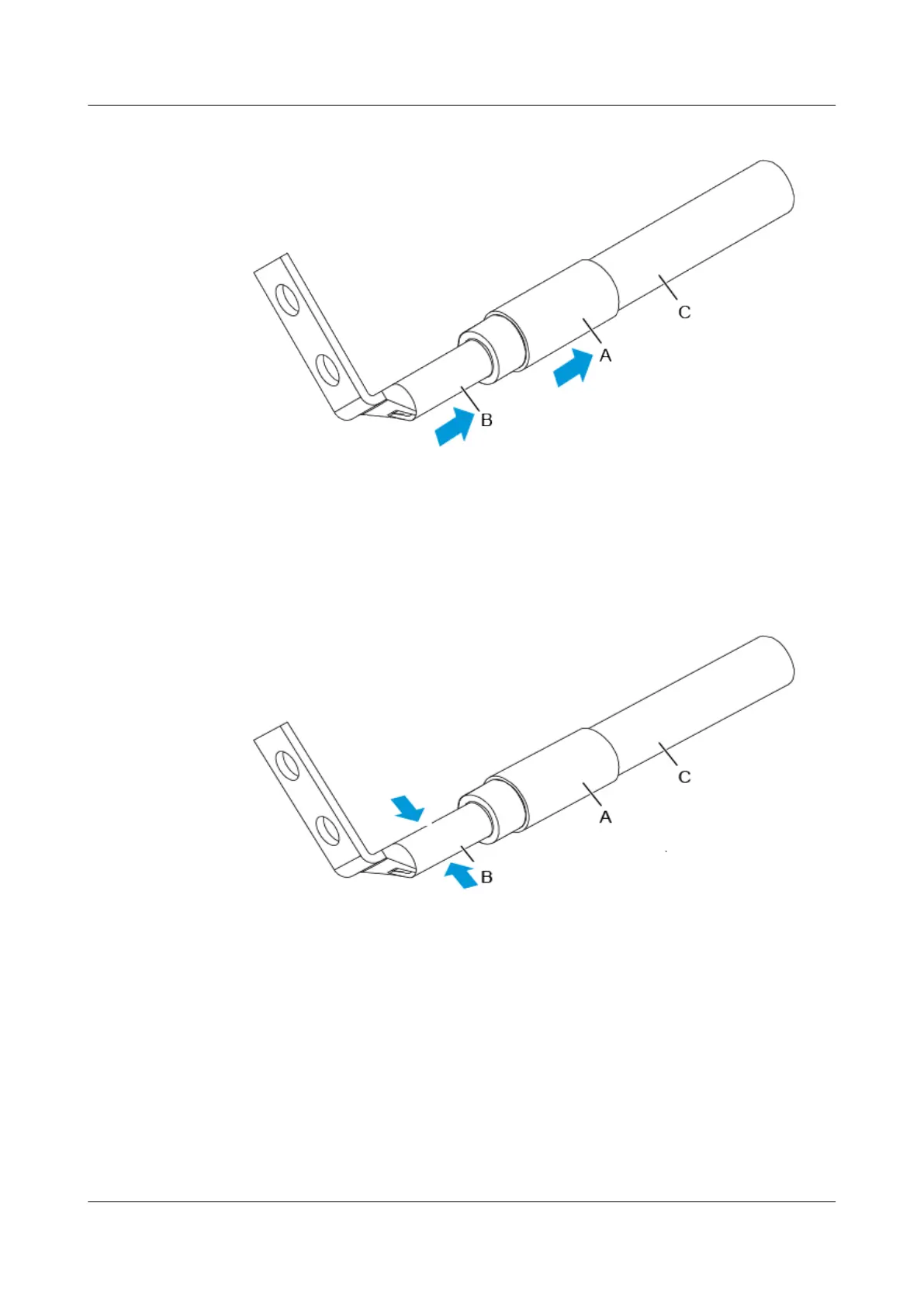

Figure 4-293 Putting the heat shrink tubing onto the bare crimping terminal
3. Put the bare crimping terminal onto the exposed conductor, and ensure that
the bare crimping terminal is in good contact with the insulation of the power
cable, as shown in Figure 4-293.
4. Crimp the joint parts of the bare crimping terminal and the conductor, as
shown in Figure 4-294.
Figure 4-294 Crimping the joint parts of the bare crimping terminal and the
conductor (JG2 terminal)
5. Push the heat shrink tubing toward the connector until the tube covers the
crimped part, and then use a heat gun to heat the tube, as shown in Figure
4-295.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 657
