Figure 4-295 Heating the heat shrink tubing (JG2 terminal)
Assembling the Cord End Terminal and Power Cable
Background
Figure 4-296 shows the components of a cord end terminal and a power cable.

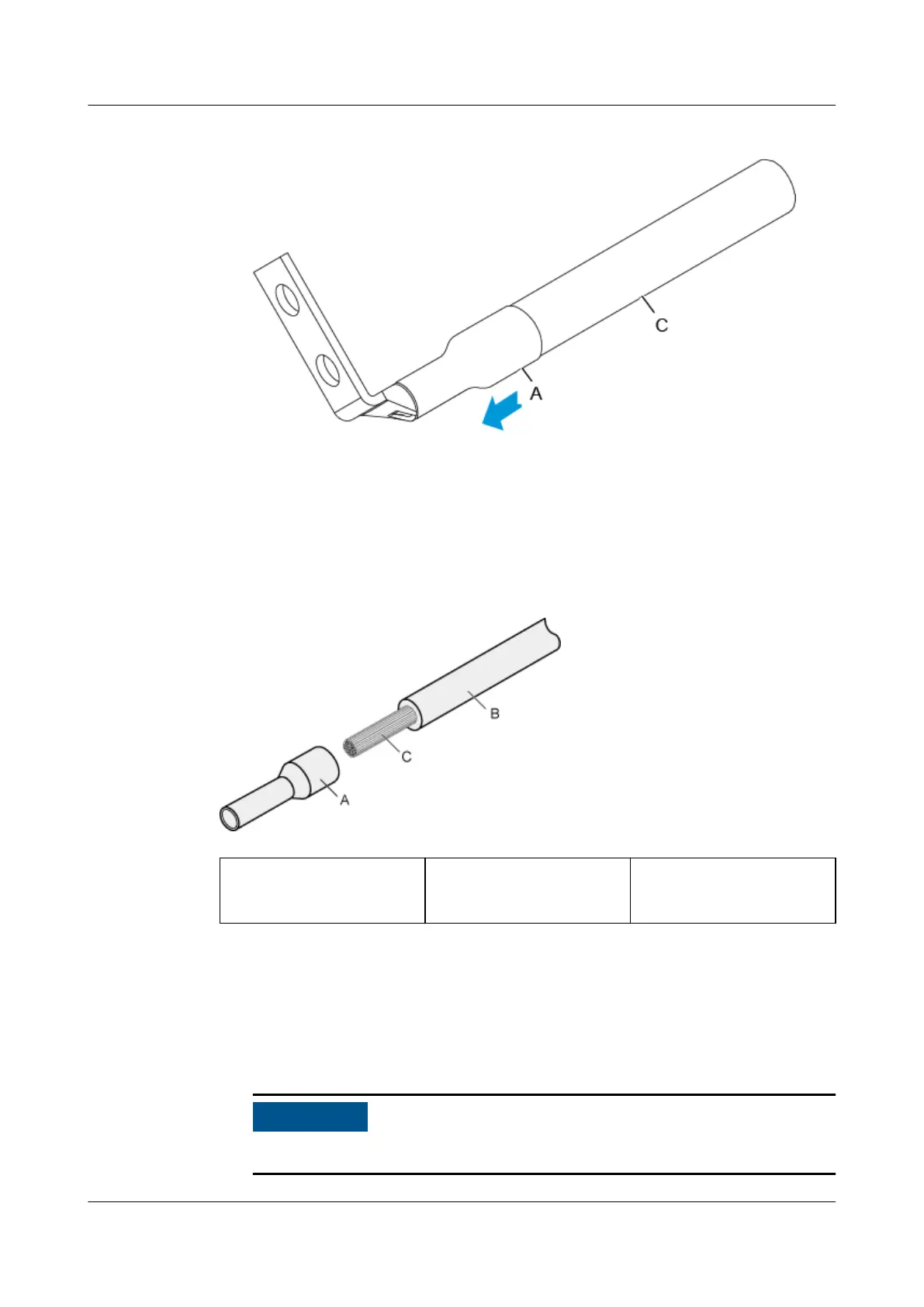

Figure 4-296 Components of a cord end terminal and a power cable
A. Cord end terminal
B. Insulation layer of a
power cable
C. Conductor of a power
cable
Procedure
1. Strip a part of the insulation layer to expose the cable conductor with a
length of L1, as shown in Figure 4-297. Determine the value of L1 based on
the cross-sectional area of the cable conductor. The recommended values of
L1 are listed in Table 4-71.
NO TICE
When you strip a power cable, do not damage the conductor of the cable.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 658
