Huawei NetEngine 8000 F User Manual

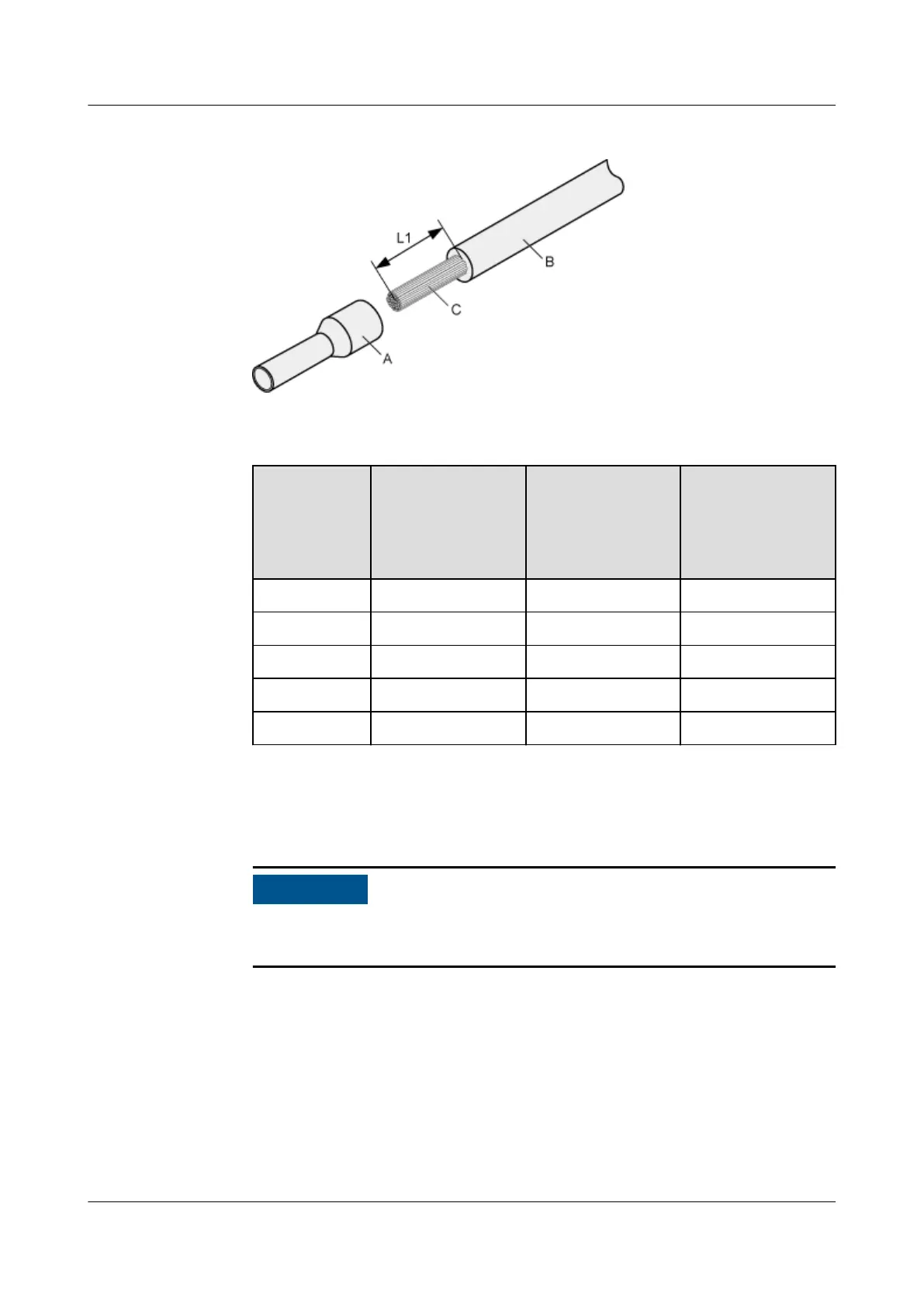

Figure 4-297 Stripping a power cable (cord end terminal)
Table 4-71 Mapping between the cross-sectional area of the conductor and
the value of L1
Cross-
Sectional
Area of
Conductor
(mm
2
(in.
2
))
Value of L1 (mm
(in.))
Cross-Sectional
Area of
Conductor (mm
2
(in.
2
))
Value of L1 (mm
(in.))
1 8 10 15
1.5 10 16 15
2.5 10 25 18
4 12 35 19
6 14 50 26
2. Put the cord end terminal onto the exposed conductor and ensure that the
conductor is aligned with the edge of the cord end terminal, as shown in
Figure 4-298.
NO TICE
After the conductor is fed into the cord end terminal, the protruding part of
the conductor must not be longer than 1 mm (0.04 in.).
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 659
