Huawei NetEngine 8000 F User Manual

Procedure

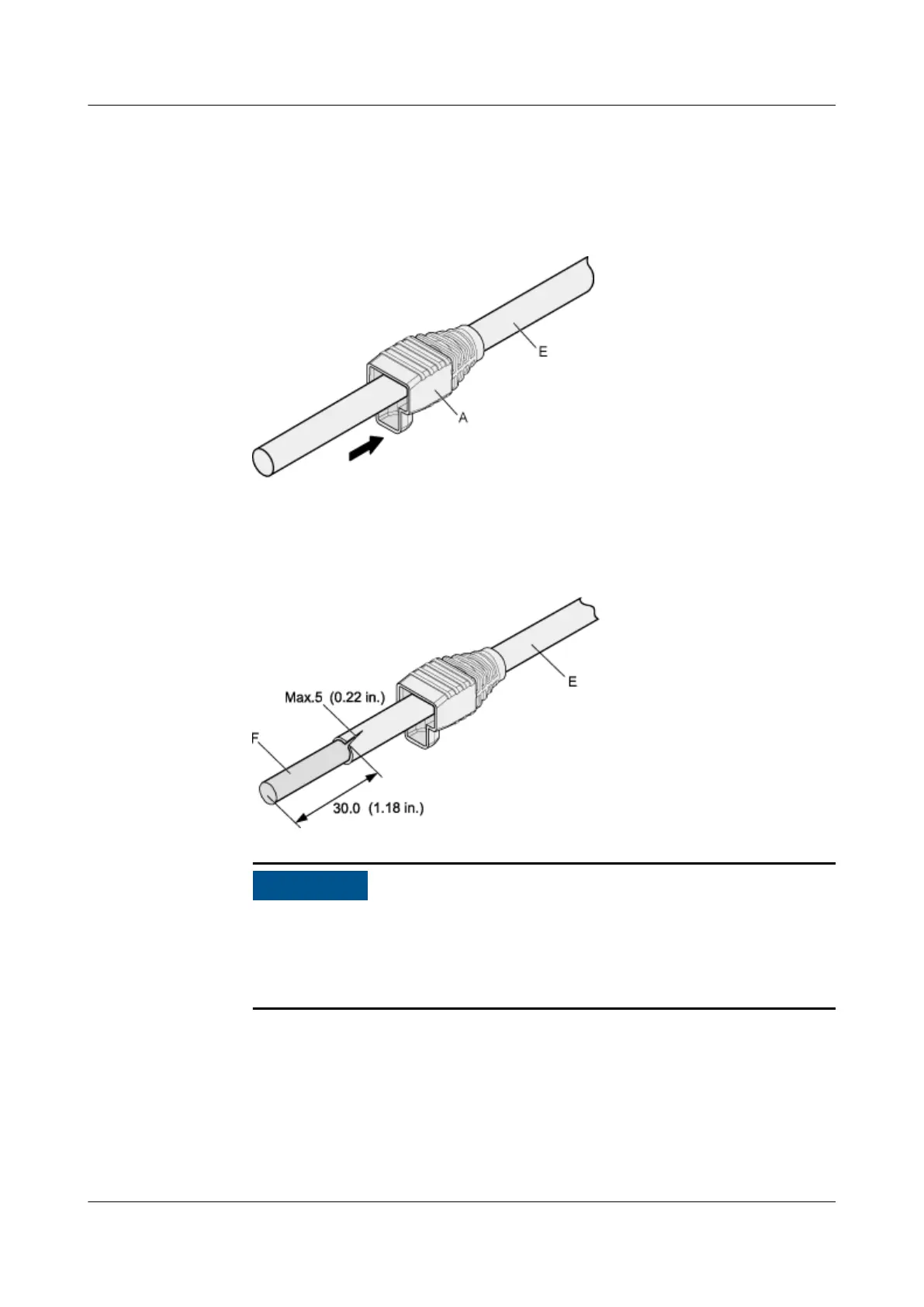

1. Fit the jacket of the connector onto the Ethernet cable, as shown in Figure
4-311.
Figure 4-311 Fitting the jacket of the connector onto the Ethernet cable
2. Remove a 30 mm (1.18 in.) long section of the jacket, cut o the nylon twine
inside the jacket, and cut a no more than 5 mm (0.20 in.) cleft in the jacket,
as shown in Figure 4-312.
Figure 4-312 Removing the jacket of a twisted-pair cable (unit: mm (in.))
NO TICE
● When you remove a section of the jacket, do not damage the shield layer
of the twisted-pair cable.
● When you remove the shield layer, do not damage the insulation of the
twisted-pair cable.
3. Fit the metal shell onto the twisted-pair cable. The shield layer is covered by
the metal shell, as shown in Figure 4-313.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 669
