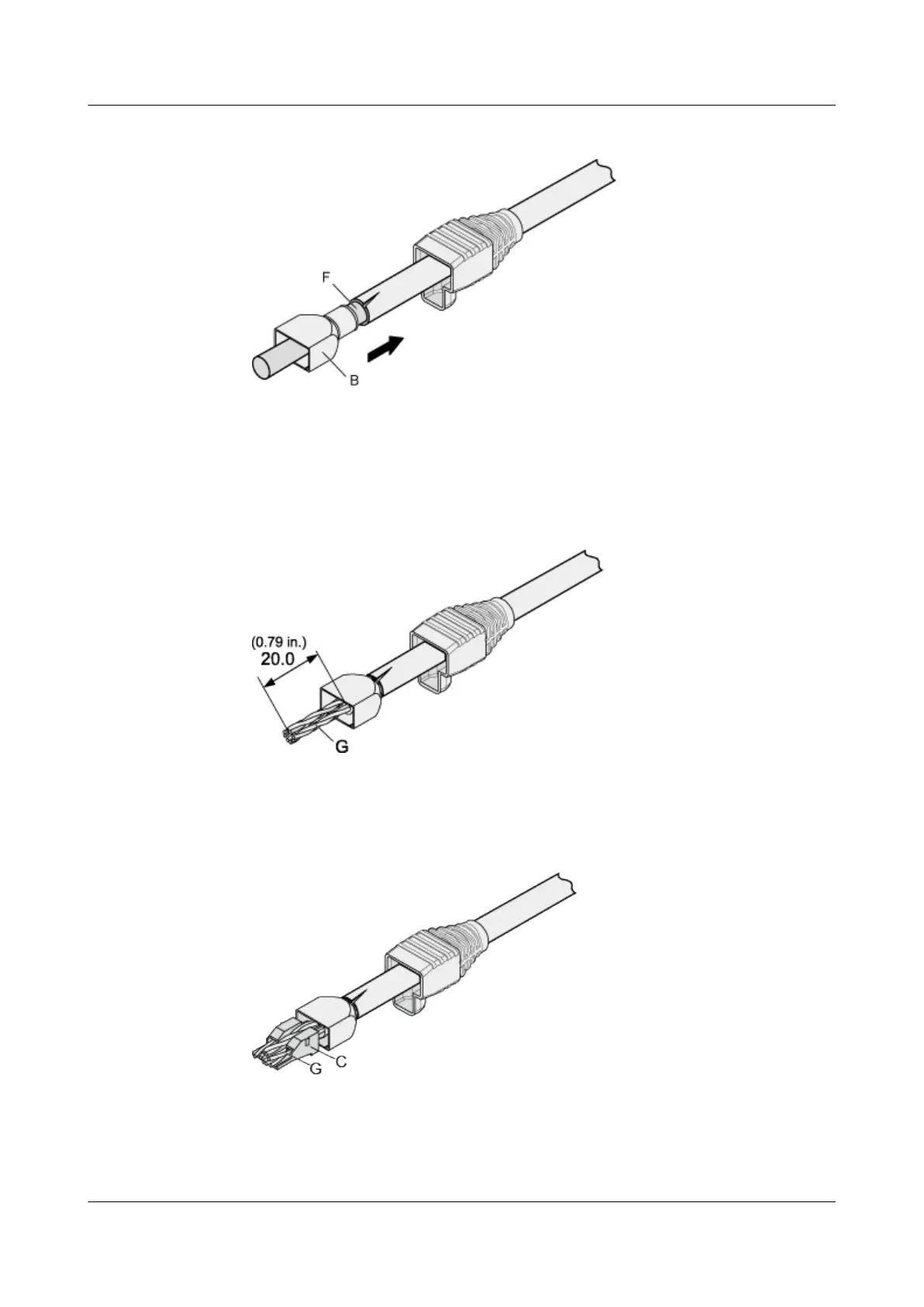

Figure 4-313 Fitting the metal shell onto the twisted-pair cable
4. Fit the metal shell onto the twisted-pair cable until the shield layer is covered
completely. Along the edge of the metal shell, cut
o the aluminum foil shield
layer and ensure that there is no surplus copper wire. The exposed twisted-
pair cable is about 20 mm (0.79 in.) long, as shown in Figure 4-314.
Figure 4-314 Removing the shield layer of a twisted-pair cable (unit: mm
(in.))
5. Lead the four pairs of twisted-pair wires through the wire holder, as shown in
Figure 4-315 and Figure 4-316. Ensure that the colored wires are in the
correct location in the cable.
Figure 4-315 Leading wires through the wire holder
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 670
