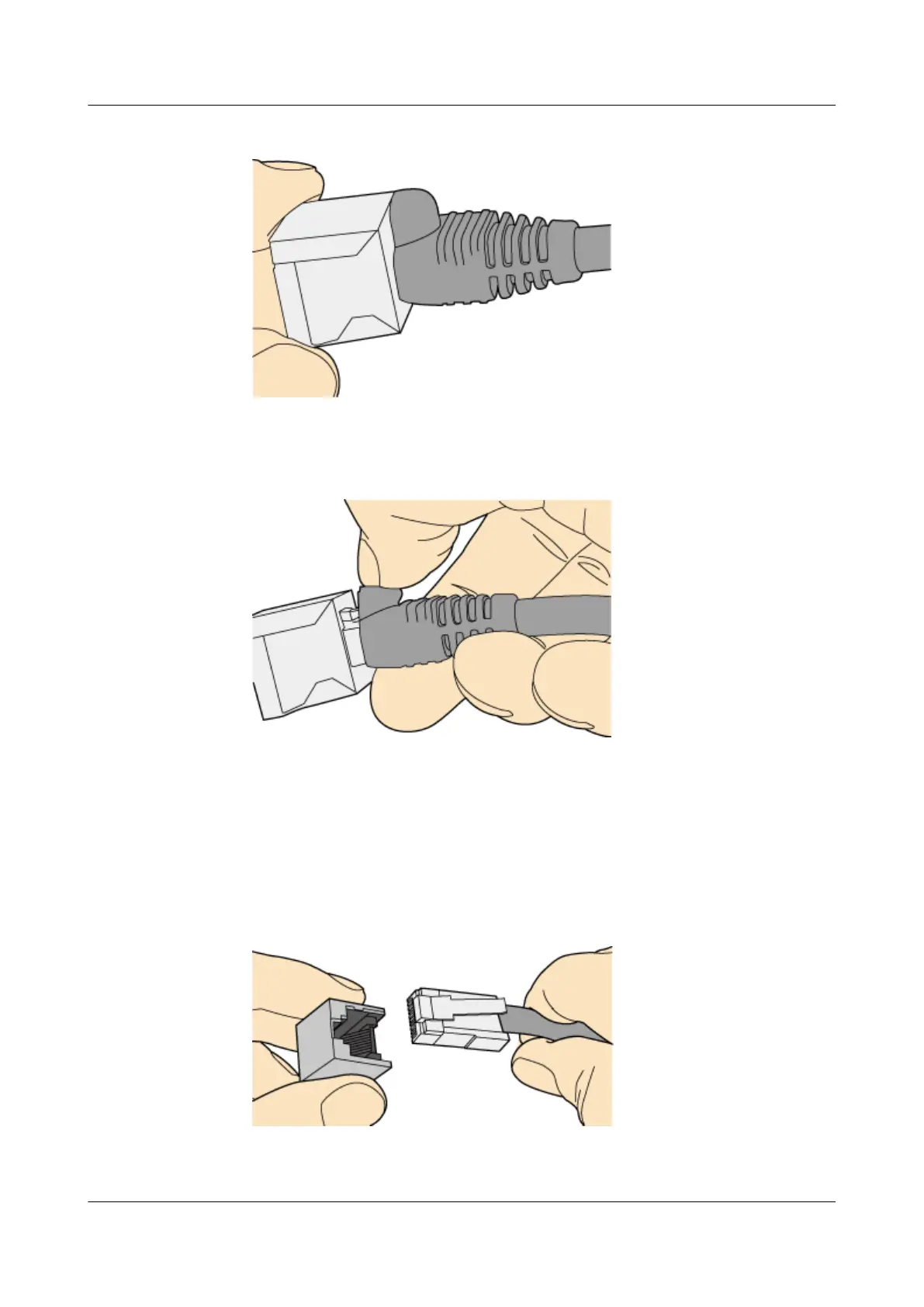

Figure 4-345 Installed shielded Ethernet connector
4. To remove an Ethernet connector, press the locking key and pull out the
connector, as shown in Figure 4-346.
Figure 4-346 Removing a shielded Ethernet connector
Installing an Unshielded Ethernet Connector
Procedure
1. Hold the male and female connectors, with the male connector facing the
female connector, as shown in Figure 4-347.
Figure 4-347 Holding the male and female unshielded connectors
2. Feed the male connector into the female connector, as shown in Figure
4-348.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 687
