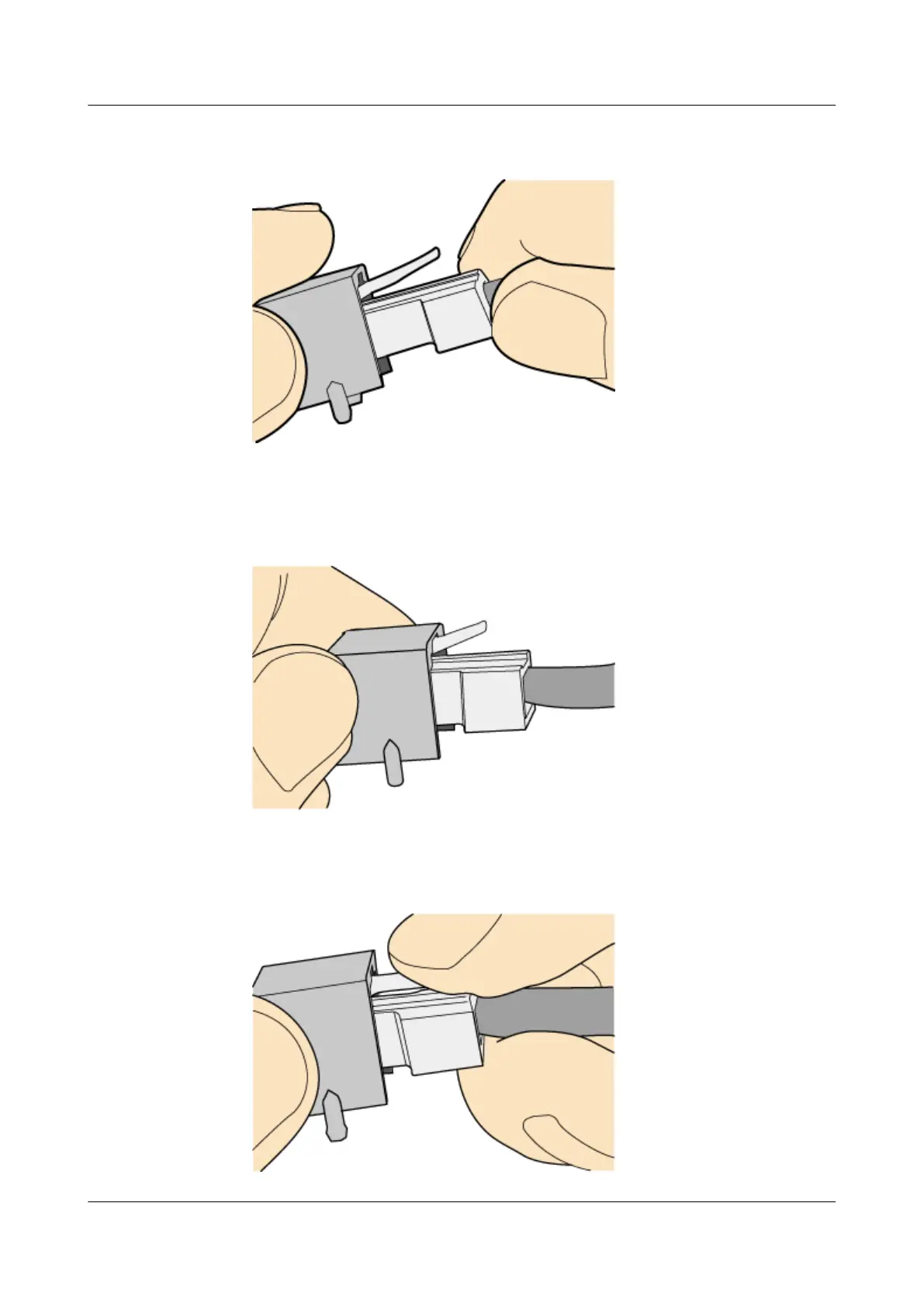

Figure 4-348 Feeding the male connector into the female unshielded
connector
3. A crisp click indicates that the connector is locked by the locking key. Pull the
connector slightly and ensure that it is securely connected. Figure 4-349
shows an installed Ethernet connector.
Figure 4-349 Installed unshielded Ethernet connector
4. To remove an Ethernet connector, press the locking key and pull out the
connector, as shown in Figure 4-350.
Figure 4-350 Removing an unshielded Ethernet connector
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 688
