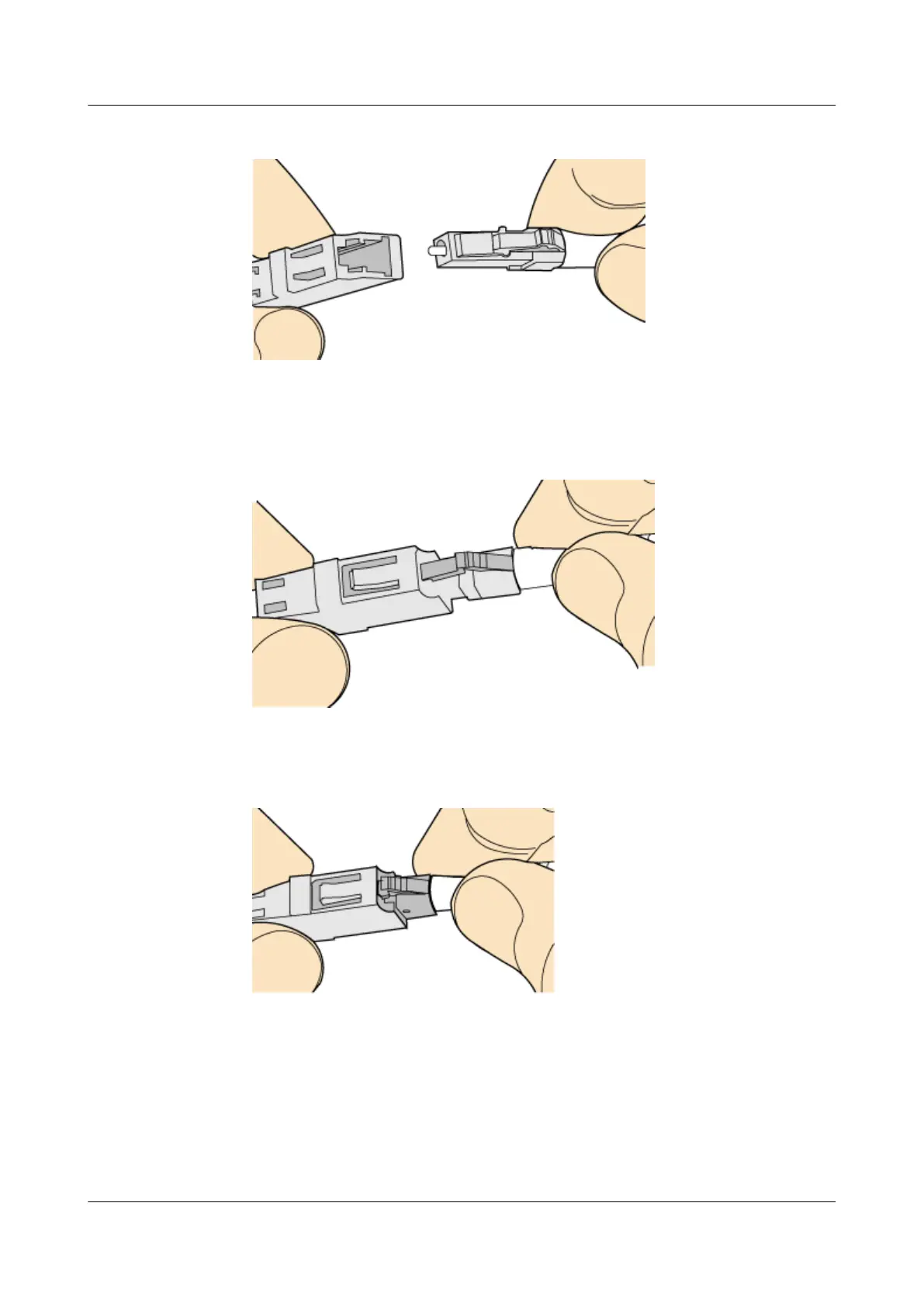

Figure 4-355 Aligning the male connector with the female connector
3. Align the male connector with the ber adapter and gently push the male
connector until it is completely seated in the
ber connector, as shown in
Figure 4-356.
Figure 4-356 Feeding the male connector into the female connector
4. A clicking sound indicates that the male connector is locked, as shown in
Figure 4-357.
Figure 4-357 Installed LC connector
5. To disassemble an LC ber connector, press the locking nut to release the
locking clips from the bore, and gently pull the male connector, as shown in
Figure 4-358.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 691
